Table slot9.WORLD.TSTA.ARREST_CHARGE_CODE_MODS
This table is used to join Arrest Charge Codes to a Module
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ARREST_CHARGE_CODE_MODULE_ID number 0 Primary Key
ARREST_CHARGE_CODE varchar2 30
ARREST_CHARGE_CODES.ARREST_CHARGE_CODE ACCMDS_CHA_FK C
Foreign key to ARREST_CHARGE_CODES table
MODULE_CODE varchar2 30
EJS_CODES.CODE ACCMDS_EJSCD_FK R
EJS Code that tells what module is associated to an Arrest Charge Code.
MODULE_CODE_TYPE varchar2 30
EJS_CODES.CODE_TYPE ACCMDS_EJSCD_FK R
EJS Code Type
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null
CREATOR_DATE date 7  √  null
CREATOR_ID varchar2 100  √  null
REC_ID number 0  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"ARREST_CHARGE_CODE" IS NOT NULL ACCMDS_CHARGE_CODE_NN
"MODULE_CODE" IS NOT NULL ACCMDS_MODULE_CODE_NN
"ARREST_CHARGE_CODE_MODULE_ID" IS NOT NULL ACCMDS_MODULE_ID_NN
"MODULE_CODE_TYPE" IS NOT NULL ACCMDS_MODULE_TYPE_NN

Indexes:
Column(s) Type Sort Constraint Name
ARREST_CHARGE_CODE_MODULE_ID Primary key Asc ACCMDS_PK
ARREST_CHARGE_CODE Performance Asc ACCMDS_CHA_FK_I
MODULE_CODE_TYPE + MODULE_CODE Performance Asc/Asc ACCMDS_EJSCD_FK_I
ARREST_CHARGE_CODE + MODULE_CODE + MODULE_CODE_TYPE Must be unique Asc/Asc/Asc ACCMDS_UK_I

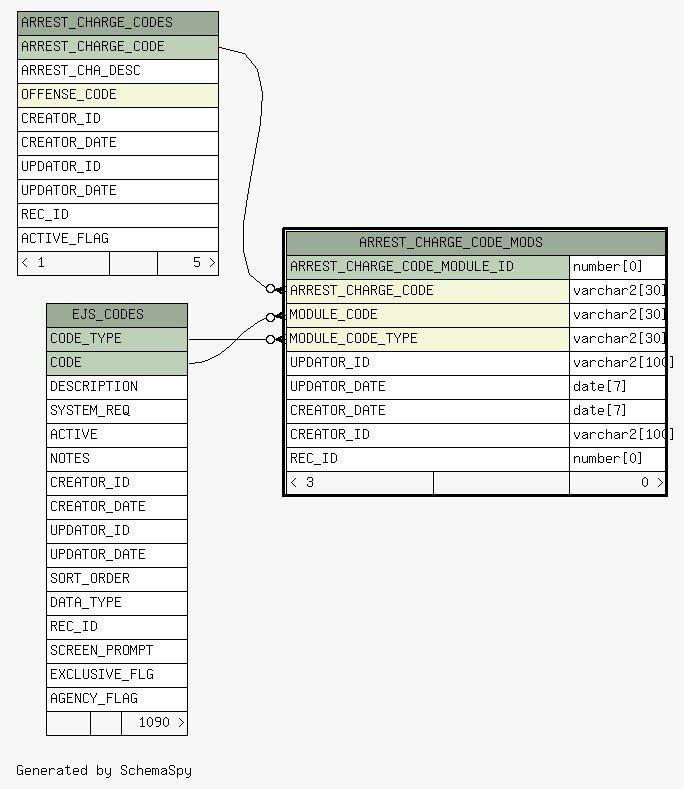

Close relationships  within of separation:
