Table slot9.WORLD.TSTA.ARREST_REF_NUMBERS
This table stores reference numbers and types added to an ARREST in the application
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ID number 38
DS_ICR_CAT_QUERIES.ID Implied Constraint R
ARREST_ID number 38
ARRESTS.ARREST_ID ARRREFN_ARR_FK C
REF_CODE varchar2 30
EJS_CODES.CODE ARRREFN_EJSCD_REF C
REF_CODE_TYPE varchar2 30
EJS_CODES.CODE_TYPE ARRREFN_EJSCD_REF C
REF_NUMBER varchar2 100  √  null
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"ARREST_ID" IS NOT NULL ARRREFN_ARREST_ID_NN
"REF_CODE" IS NOT NULL ARRREFN_CD_NN
"REF_CODE_TYPE" IS NOT NULL ARRREFN_CD_TYP_NN
"ID" IS NOT NULL ARRREFN_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
ID Primary key Asc ARRREFN_PK
ARREST_ID Performance Asc ARRREFN_ARR_FK_I
REF_CODE_TYPE + REF_CODE Performance Asc/Asc ARRREFN_EJSCD_REF_I

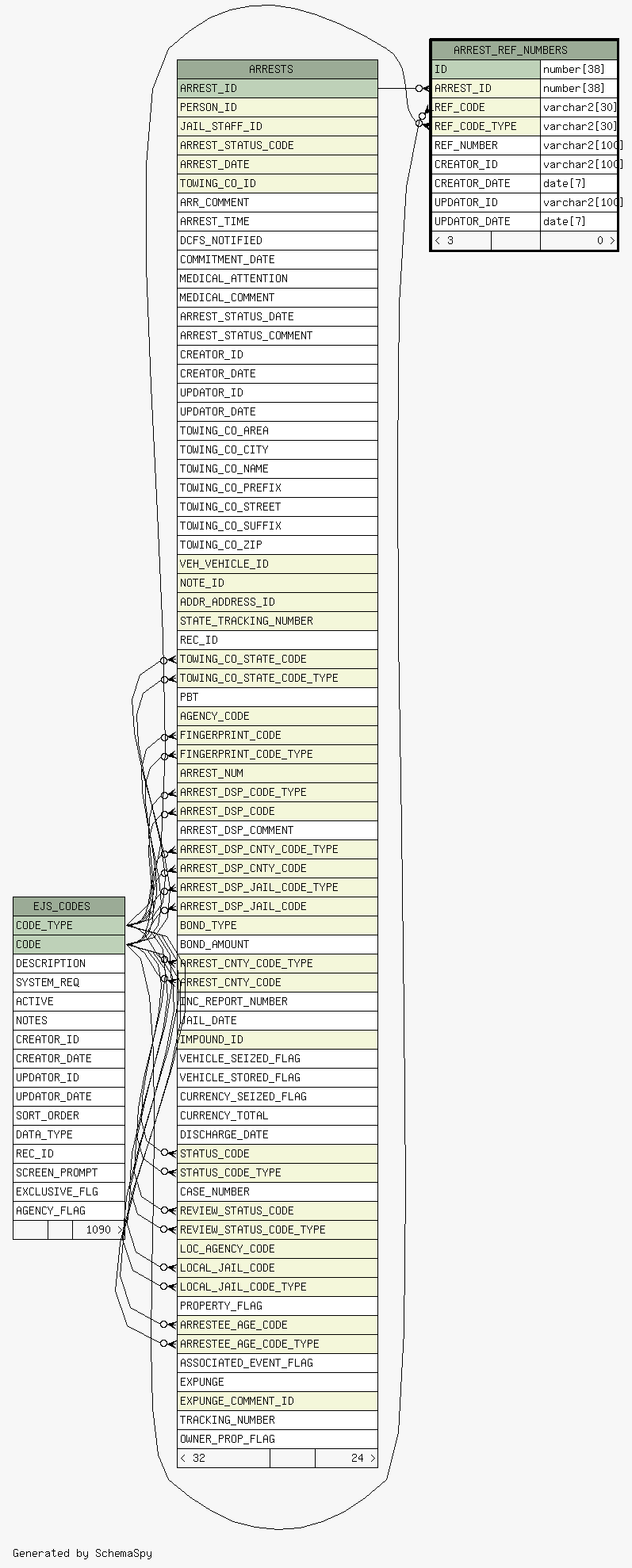

Close relationships  within of separation:
