Table slot9.WORLD.TSTA.CALENDAR_ASSIGNMENT_SERIES
This table store a grouping of assignments added to a calendar in the scheduling module in the application
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ASSIGNMENT_SERIES_ID number 38
CALENDAR_ASSIGNMENTS.ASSIGNMENT_SERIES_ID CALASSIGN_CALSERIES_FK R
CALENDAR_ASSIGNMENTS_AUDIT.ASSIGNMENT_SERIES_ID Implied Constraint R
TEMPLATE_ID number 38  √  null
CALENDAR_TEMPLATES.TEMPLATE_ID CALSERIES_CALTMP_FK R
SERIES_TYPE_CODE varchar2 30  √  null
EJS_CODES.CODE CALSERIES_EJSCD_SERIES_FK R
SERIES_TYPE_CODE_TYPE varchar2 30  √  'ASSIGNMENT_SERIES_TYPES'
EJS_CODES.CODE_TYPE CALSERIES_EJSCD_SERIES_FK R
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"ASSIGNMENT_SERIES_ID" IS NOT NULL CALSERIES_ASSIGNID_NN

Indexes:
Column(s) Type Sort Constraint Name
ASSIGNMENT_SERIES_ID Primary key Asc CALSERIES_PK
TEMPLATE_ID Performance Asc CALSERIES_CALTMP_FK_I
SERIES_TYPE_CODE_TYPE + SERIES_TYPE_CODE Performance Asc/Asc CALSERIES_EJSCD_SERIES_FK_I

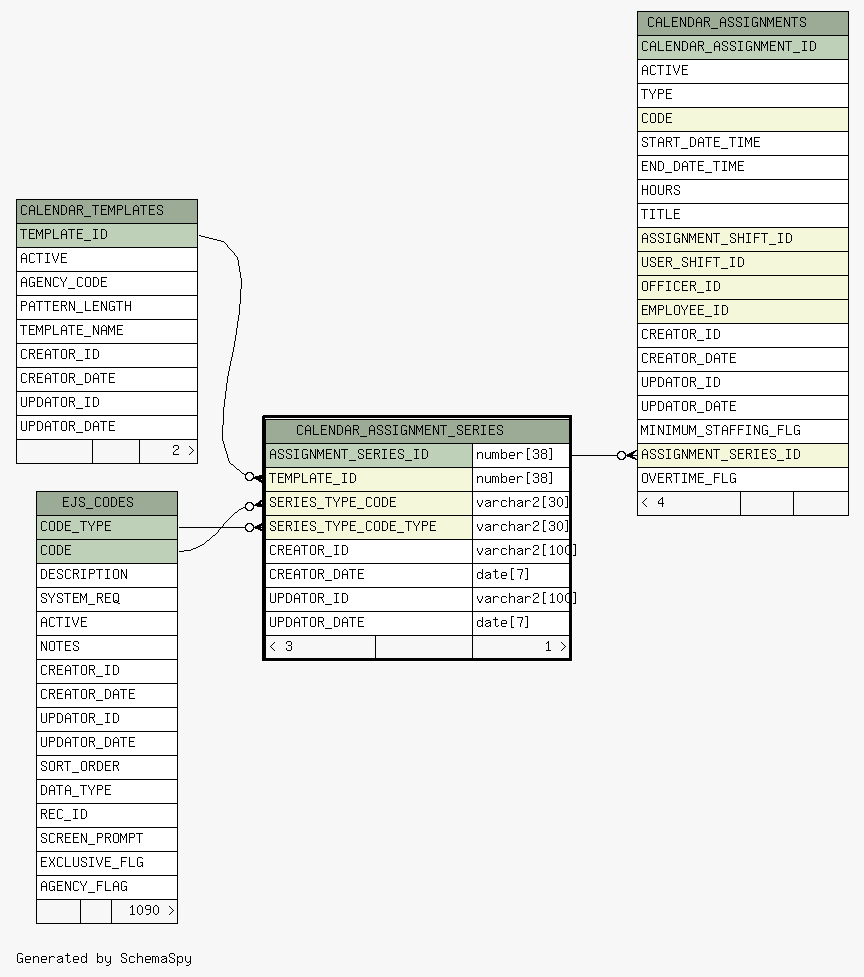

Close relationships  within of separation:
