Table slot9.WORLD.TSTA.CASE_ATTACHMENTS
This table stores attachments added to a Case in the application
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
CASE_ID number 38
INCIDENT_CASES.INC_CASE_ID CASATT_IC_FK C
ID number 38
ATTACHMENTS.ID CASATT_ATT_FK C
KEYWORD varchar2 80  √  null
DATE_OF_INFO date 7  √  null
ATTACHMENT_DESC varchar2 2000  √  null
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null
REC_ID number 0  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"CASE_ID" IS NOT NULL CASATT_CASE_ID_NN
"ID" IS NOT NULL CASATT_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
CASE_ID + ID Primary key Asc/Asc CASATT_PK
ID Performance Asc CASATT_ATT_FK_I
CASE_ID Performance Asc CASATT_IC_FK_I

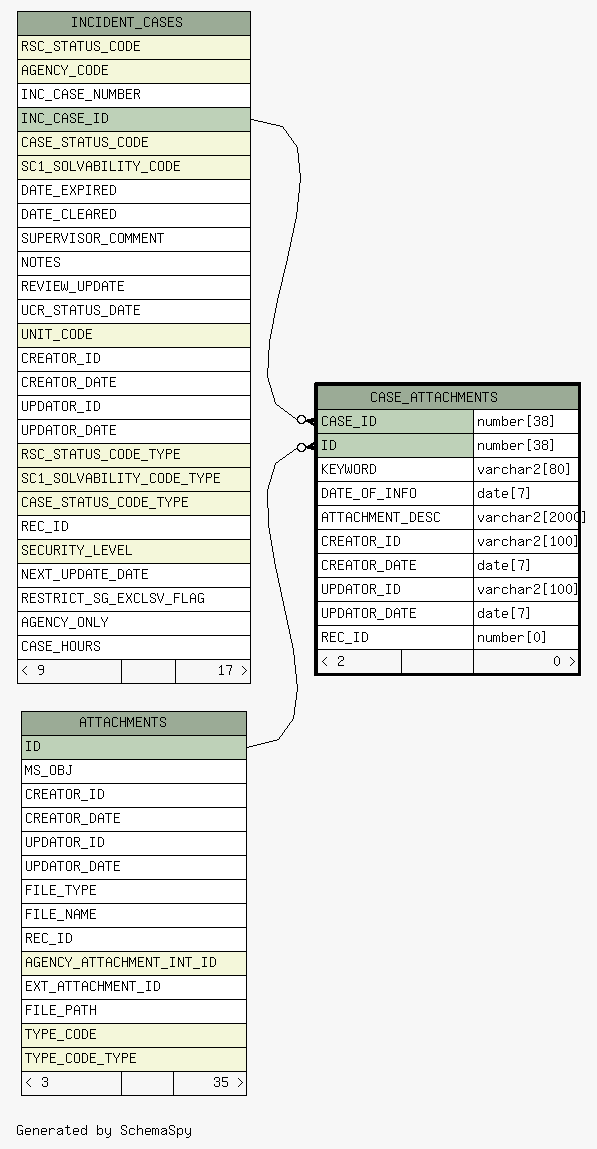

Close relationships  within of separation:
