Table slot9.WORLD.TSTA.EJS_XML_DOC_NARRATIVES
This table is an administration table that is used for processing XML documents being loaded into the database
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
XML_DOC_ID number 0
EJSXML_DOCS.XML_DOC_ID EXDN_ED_FK R
A unique sequence used to identify a XML Document.
NOTE_ID number 0
EJS_NOTES.NOTE_ID EXDN_EJSN_FK C
Uniqe ID for Note
DATE_OF_INFO date 7  √  null The date the attachment was received.
KEYWORD varchar2 80  √  null A keyword that may be used to categorize attachments.
CREATOR_ID varchar2 100  √  null Person creating the record
CREATOR_DATE date 7  √  null Date of record creation
UPDATOR_ID varchar2 100  √  null Person who last updated the record
UPDATOR_DATE date 7  √  null Date of last update
REC_ID number 0  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"NOTE_ID" IS NOT NULL EXDN_NOTE_ID_NN
"XML_DOC_ID" IS NOT NULL EXDN_XML_DOC_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
NOTE_ID + XML_DOC_ID Primary key Asc/Asc EXDN_PK
XML_DOC_ID Performance Asc EXDN_ED_FK_I
NOTE_ID Performance Asc EXDN_EJSN_FK_I

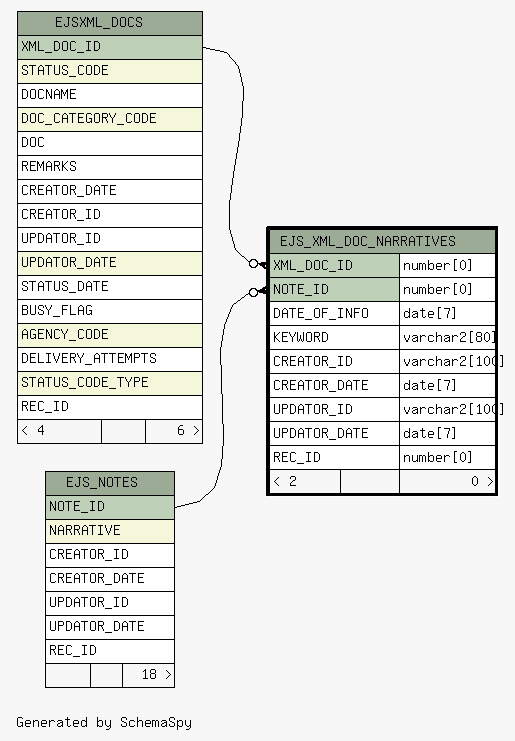

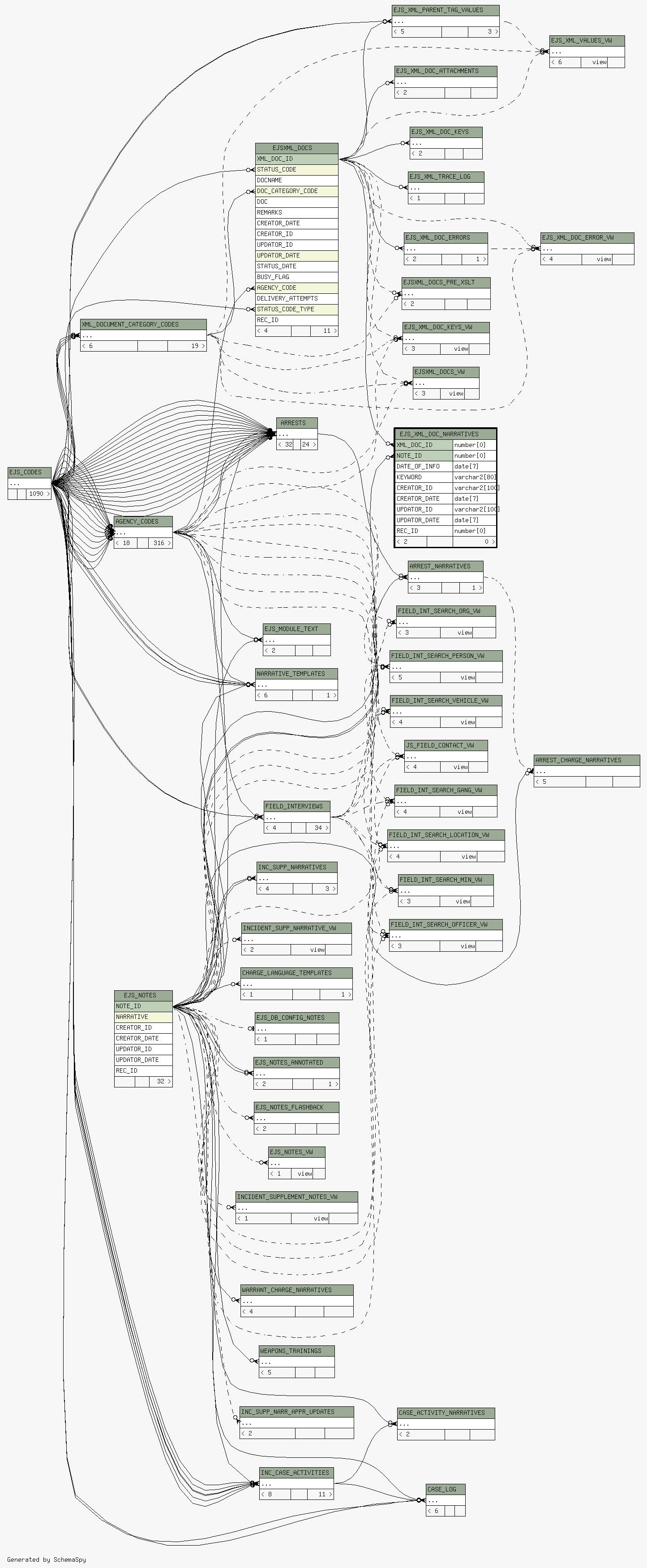

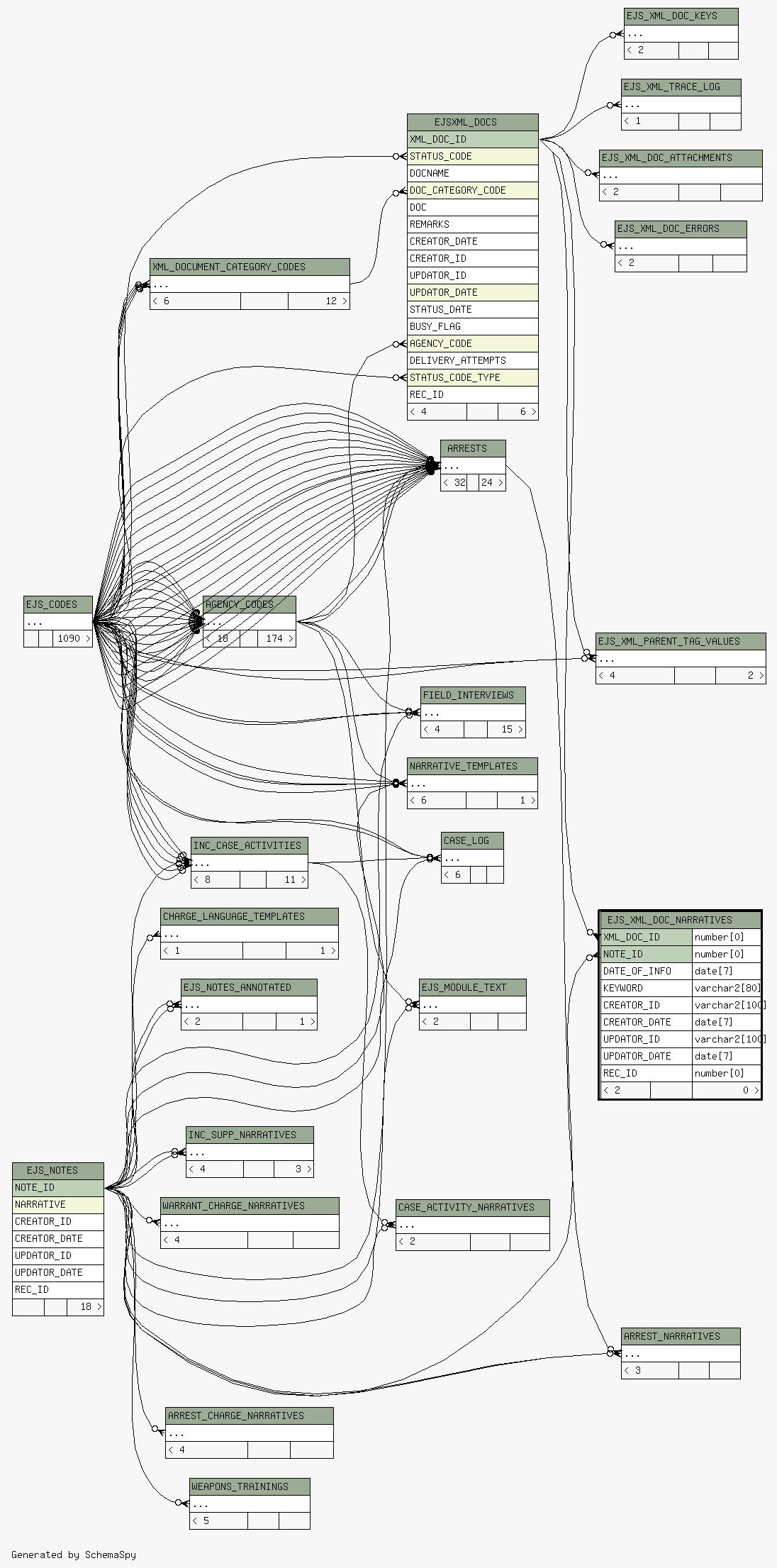

Close relationships  within of separation:
