Table slot9.WORLD.TSTA.INCIDENT_CITATIONS
This table stores the association between an citation and an INCIDENT
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
INC_INCIDENT_ID number 38
INCIDENT_SUPPLEMENTS.INC_INCIDENT_ID INC_CIT_INCSUP_FK C
Incident ID number assigned
SUPP_SEQ number 38
INCIDENT_SUPPLEMENTS.SUPP_SEQ INC_CIT_INCSUP_FK C
Supplement Sequence Number 1 = Original Report
CITATION_ID number 38
CITATIONS.CITATION_ID INC_CIT_CITATION_FK C
sequence to distinguish individual tickets
COMMENTS varchar2 255  √  null
CREATOR_ID varchar2 100  √  null Domain to store an Oracle USER ID
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null Domain to store an Oracle USER ID
UPDATOR_DATE date 7  √  null
REC_ID number 0  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"CITATION_ID" IS NOT NULL INC_CIT_CITATION_ID_NN
"INC_INCIDENT_ID" IS NOT NULL INC_CIT_INC_INCIDENT_ID_NN
"SUPP_SEQ" IS NOT NULL INC_CIT_SUPP_SEQ_NN

Indexes:
Column(s) Type Sort Constraint Name
CITATION_ID + INC_INCIDENT_ID + SUPP_SEQ Primary key Asc/Asc/Asc INC_CIT_PK
CITATION_ID Performance Asc INC_CIT_CITATION_FK_I
INC_INCIDENT_ID + SUPP_SEQ Performance Asc/Asc INC_CIT_INCSUP_FK_I

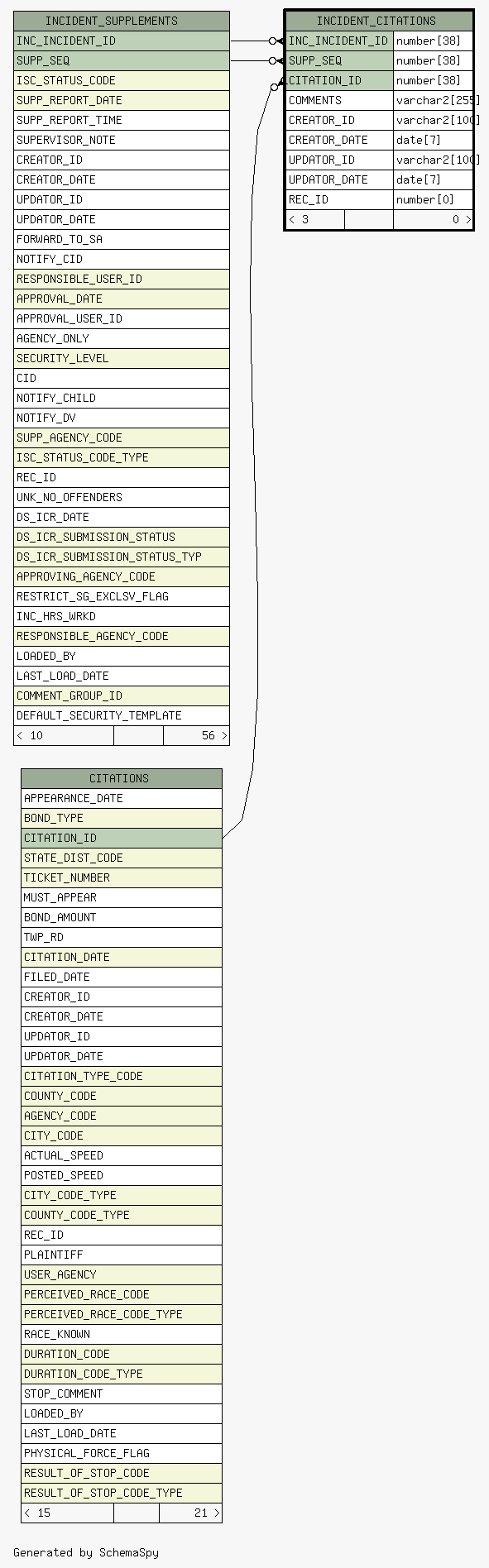

Close relationships  within of separation:
