Table slot9.WORLD.TSTA.INC_CASE_XREFS
This table stores external ids for an INCIDENT from external applications or interfaces. Data is uploaded through the Incident XML import
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
INC_CASE_ID number 0
INCIDENT_CASES.INC_CASE_ID ICX_IC_FK R
The unique identifier for an Incident Case
PARENT_INC_CASE_ID number 0
INCIDENT_CASES.INC_CASE_ID ICX_PARENT_IC_FK R
The unique identifier for an Parent Incident Case
ICX_COMMENT varchar2 255  √  null A comment for the cross-reference
CREATOR_ID varchar2 100  √  null Record created by USER ID
CREATOR_DATE date 7  √  null Date record was created
UPDATOR_ID varchar2 100  √  null Record updated by USER ID
UPDATOR_DATE date 7  √  null Date record was updated
REC_ID number 0  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"INC_CASE_ID" IS NOT NULL ICX_INC_CASE_ID_NN
"PARENT_INC_CASE_ID" IS NOT NULL ICX_PARENT_INC_CASE_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
INC_CASE_ID + PARENT_INC_CASE_ID Primary key Asc/Asc ICX_PK
INC_CASE_ID Performance Asc ICX_IC_FK_I
PARENT_INC_CASE_ID Performance Asc ICX_PARENT_IC_FK_I

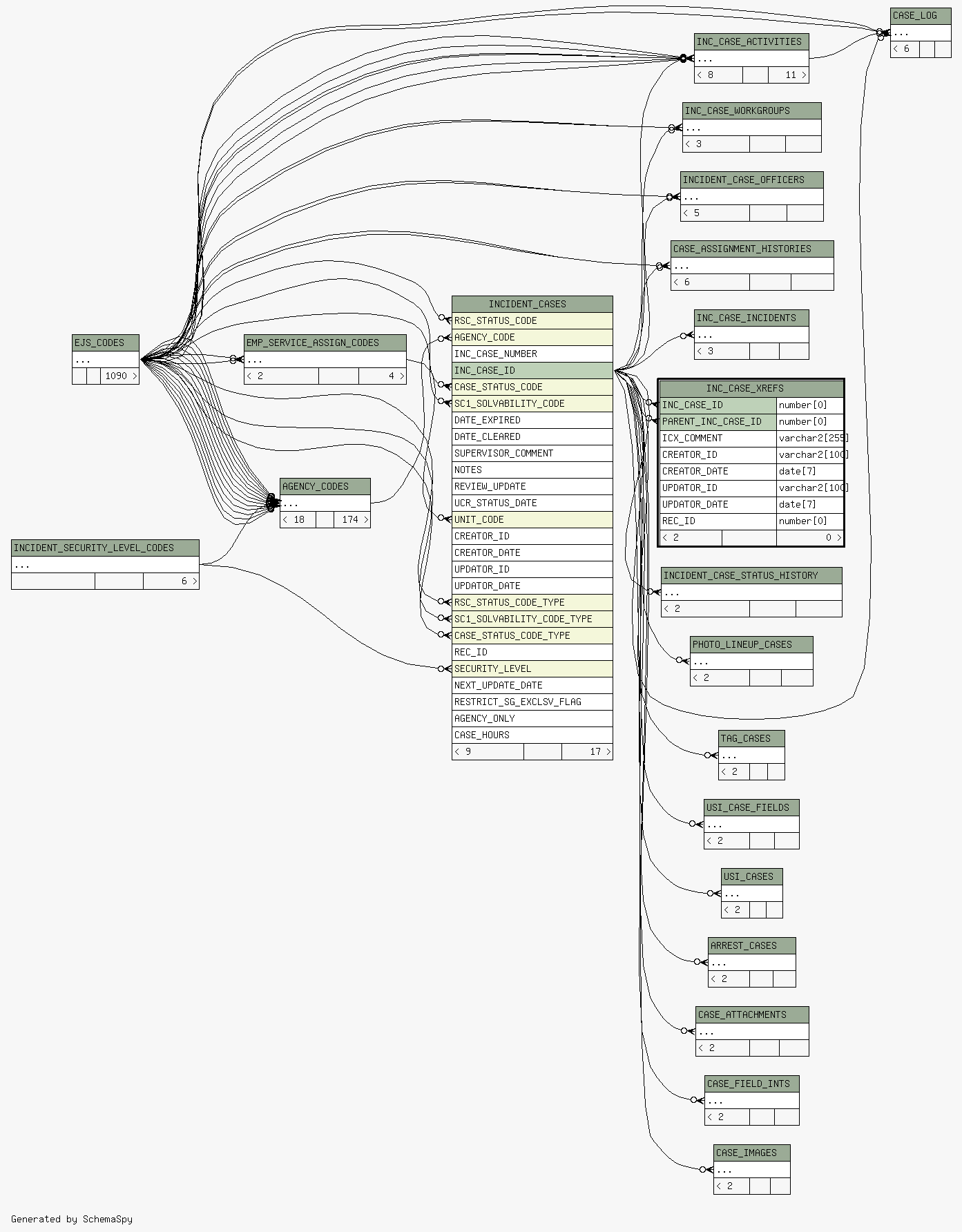

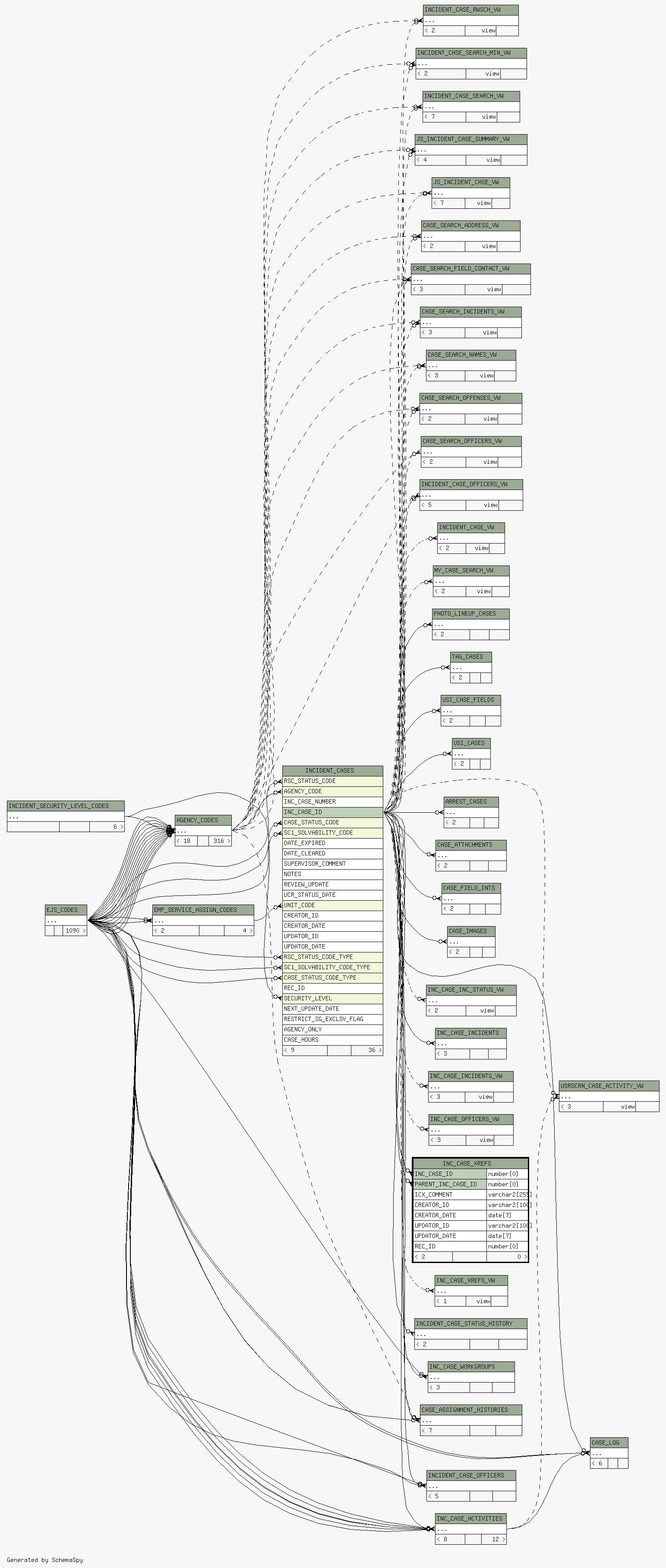

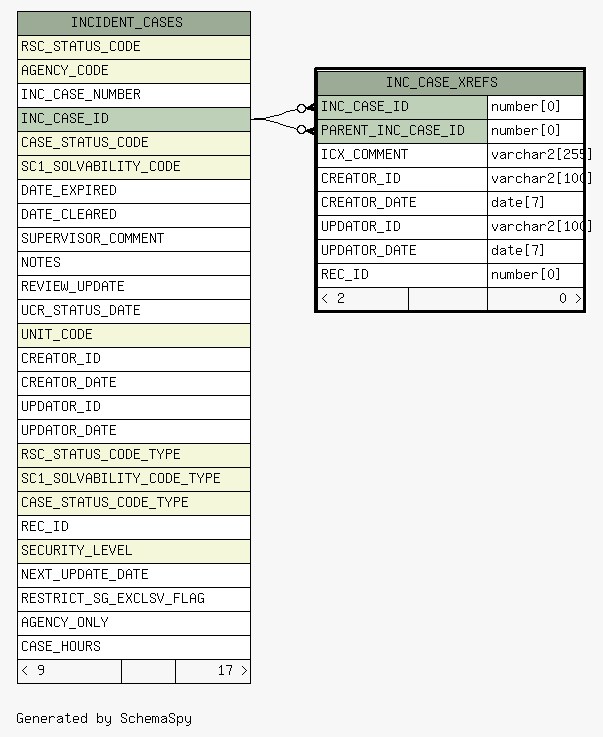

Close relationships  within of separation:
