Table slot9.WORLD.TSTA.MAP_EVENT_TYPE_CODES
Stores different map event types which can be selected by the user
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
CODE varchar2 50 Primary Key
DESCRIPTION varchar2 100 A short description of the event type
MAP_ICON_ID number 0
MAP_ICONS.ID MAPET_MAPIC_FK R
The icon to associate with this event type
FEATURE_CODE varchar2 30
EJS_CODES.CODE MAPET_EJSCD_FEAT_FK R
FEATURE_CODE_TYPE varchar2 30
EJS_CODES.CODE_TYPE MAPET_EJSCD_FEAT_FK R
IGNORE_DATE_FLAG varchar2 1  √  'N'
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"CODE" IS NOT NULL MAPET_CODE_NN
"DESCRIPTION" IS NOT NULL MAPET_DESC_NN
"FEATURE_CODE" IS NOT NULL MAPET_FEAT_CD_NN
"FEATURE_CODE_TYPE" IS NOT NULL MAPET_FEAT_CD_TYP_NN
"MAP_ICON_ID" IS NOT NULL MAPET_ICON_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
CODE Primary key Asc MAPET_PK
FEATURE_CODE_TYPE + FEATURE_CODE Performance Asc/Asc MAPET_EJSCD_FEAT_FK_I
MAP_ICON_ID Performance Asc MAPET_MAPIC_FK_I

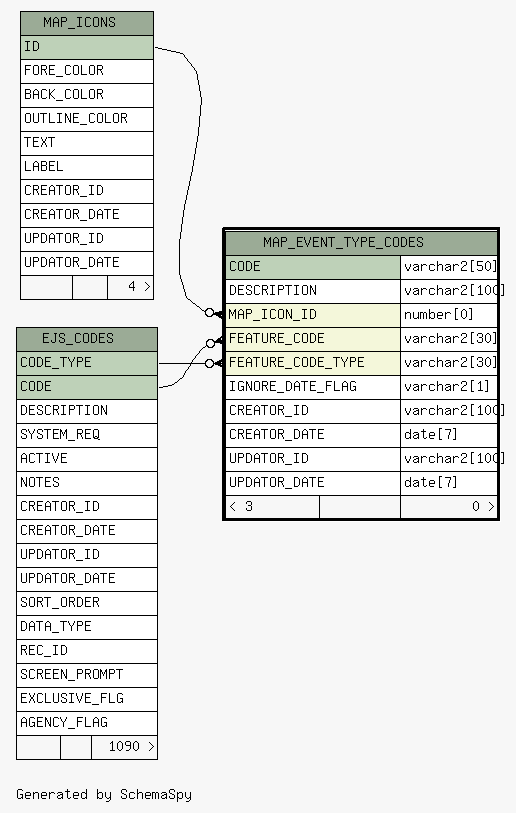

Close relationships  within of separation:
