Table slot9.WORLD.TSTA.MAP_SHAPE_USERS
Relates map shapes to users as to assign service areas
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
SHAPE_ID number 38
MAP_SHAPES.SHAPE_ID MSUS_MS_FK R
Foreign Key to MAP_SHAPES
LOGIN_ID varchar2 100
IJIS_USER_PROFILES.LOGIN_ID MSUS_IUP_FK R
Foreign Key to IJIS_USER_PROFILES
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null
PURPOSE_CODE varchar2 30
EJS_CODES.CODE MSUS_PURP_EJS_CD_FK R
PURPOSE_CODE_TYPE varchar2 30 'SHAPE_USER_PURPOSE_CODES'
EJS_CODES.CODE_TYPE MSUS_PURP_EJS_CD_FK R

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"LOGIN_ID" IS NOT NULL MSUS_LOGIN_ID_NN
"PURPOSE_CODE" IS NOT NULL MSUS_PURP_CD_NN
"PURPOSE_CODE_TYPE" IS NOT NULL MSUS_PURP_CD_TYP_NN
"SHAPE_ID" IS NOT NULL MSUS_SHAPE_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
SHAPE_ID + LOGIN_ID + PURPOSE_CODE_TYPE + PURPOSE_CODE Primary key Asc/Asc/Asc/Asc MSUS_PK
LOGIN_ID Performance Asc MSUS_IUP_FK_I
SHAPE_ID Performance Asc MSUS_MS_FK_I
PURPOSE_CODE_TYPE + PURPOSE_CODE Performance Asc/Asc MSUS_PURP_EJS_CD_FK_I

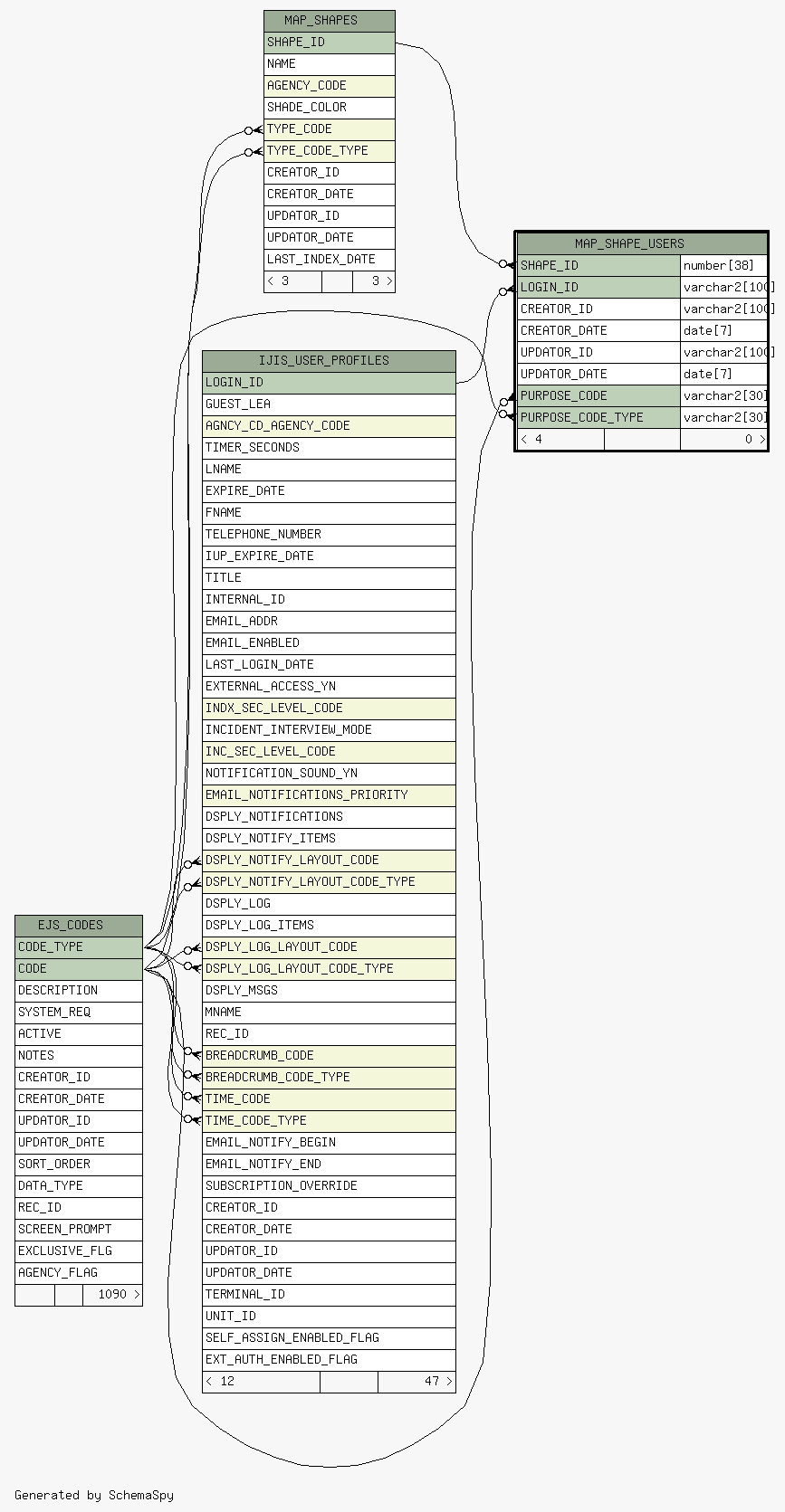

Close relationships  within of separation:
