Table slot9.WORLD.TSTA.RV_PROPERTIES
Properties
Legend:
Primary key columns
Columns with indexes

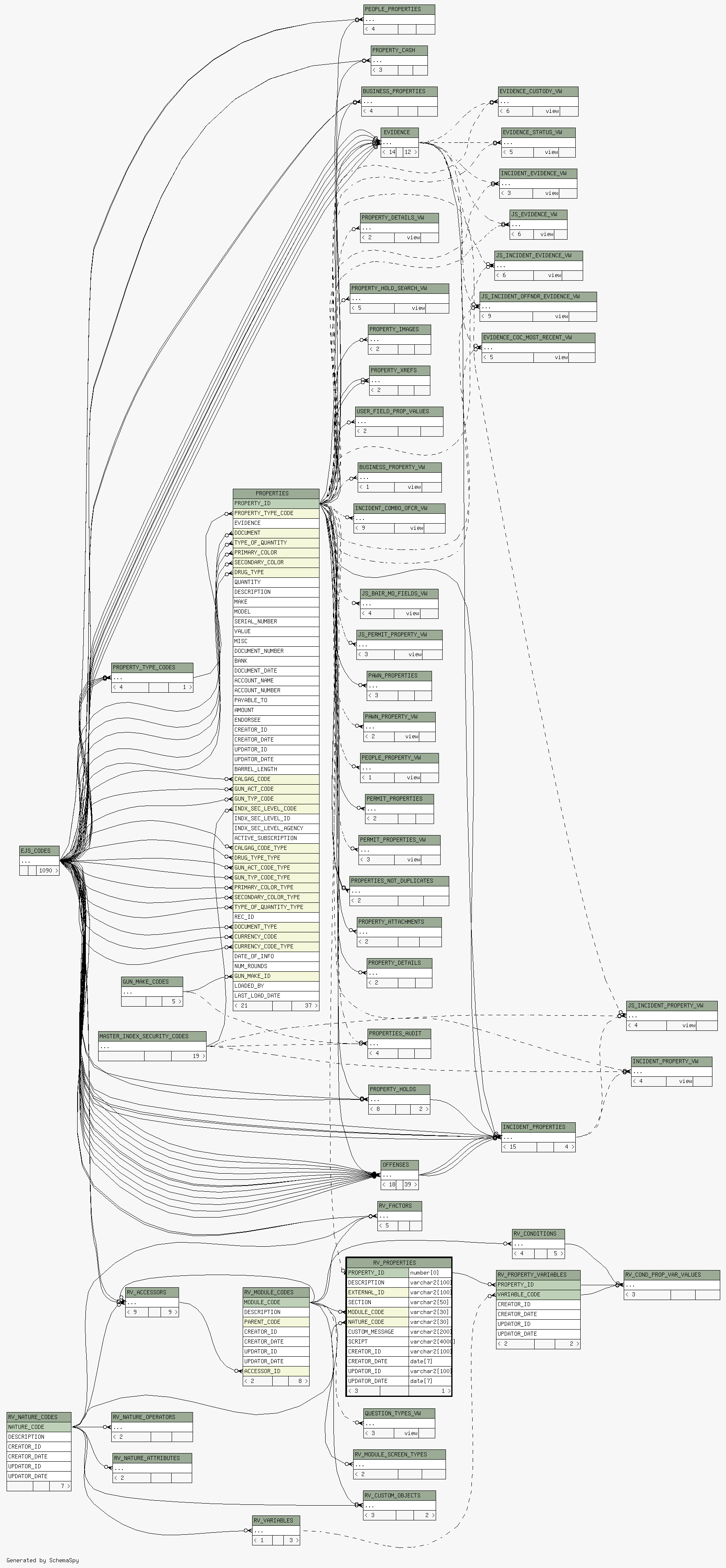

Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
PROPERTY_ID number 0
RV_PROPERTY_VARIABLES.PROPERTY_ID RVPV_RVPROP_FK C
PROPERTIES.PROPERTY_ID Implied Constraint R
DESCRIPTION varchar2 100  √  null
EXTERNAL_ID varchar2 100
SECTION varchar2 50  √  null
MODULE_CODE varchar2 30
RV_MODULE_CODES.MODULE_CODE RVPROP_RVMC_FK R
NATURE_CODE varchar2 30
RV_NATURE_CODES.NATURE_CODE RVPROP_RVNC_FK R
CUSTOM_MESSAGE varchar2 200  √  null
SCRIPT varchar2 4000  √  null
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"EXTERNAL_ID" IS NOT NULL RVPROP_EXT_ID_NN
"MODULE_CODE" IS NOT NULL RVPROP_MOD_CD_NN
"NATURE_CODE" IS NOT NULL RVPROP_NAT_CD_NN
"PROPERTY_ID" IS NOT NULL RVPROP_PROP_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
PROPERTY_ID Primary key Asc RVPROP_PK
MODULE_CODE Performance Asc RVPROP_RVMC_FK_I
NATURE_CODE Performance Asc RVPROP_RVNC_FK_I
EXTERNAL_ID + MODULE_CODE Must be unique Asc/Asc RVPROP_UK

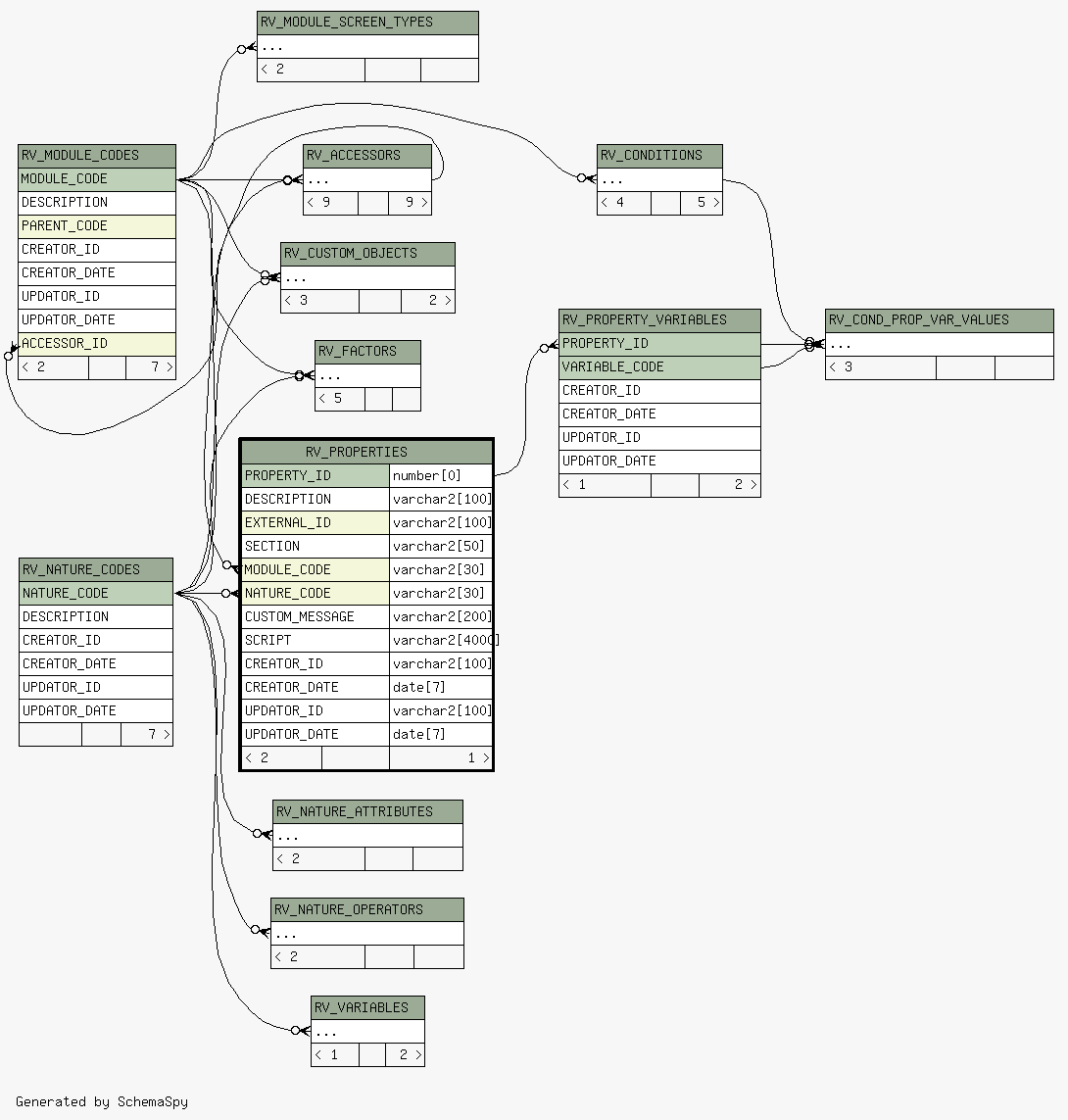

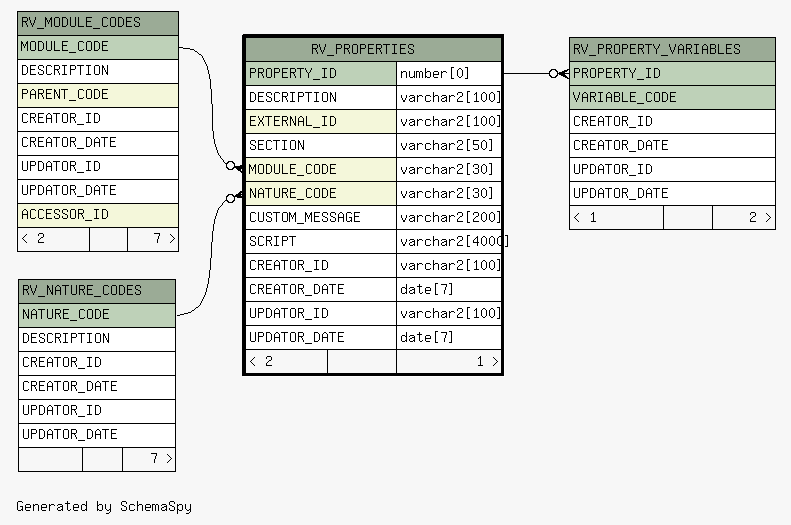

Close relationships  within of separation:
