Table slot9.WORLD.TSTA.SCREEN_TYPE_SCREEN_PDFS
Associates Fillable PDFs with Custom Forms
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ID number 0
SCREEN_TYPE_SCREEN_PDF_FIELDS.STSF_ID STSPF_STSP_FK R
COURT_CASE_DELETE.ID Implied Constraint R
NAME varchar2 100  √  null
SCREEN_ID number 0
SCREEN_TYPE_SCREENS.SCREEN_ID STSP_USRSCRN_STS_FK R
SCREEN_TYPE_CODE varchar2 30
SCREEN_TYPE_SCREENS.SCREEN_TYPE_CODE STSP_USRSCRN_STS_FK R
ATTACHMENT_ID number 0
ATTACHMENTS.ID STSP_ATT_FK R
DEFAULT_FLAG varchar2 1  √  'N'
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"ATTACHMENT_ID" IS NOT NULL STSP_ATT_ID_NN
"ID" IS NOT NULL STSP_ID_NN
"SCREEN_ID" IS NOT NULL STSP_SCREEN_ID_NN
"SCREEN_TYPE_CODE" IS NOT NULL STSP_SCREEN_TYPE_CD_NN

Indexes:
Column(s) Type Sort Constraint Name
ID Primary key Asc STSP_PK
ATTACHMENT_ID Performance Asc STSP_ATT_FK_I
SCREEN_ID + SCREEN_TYPE_CODE + ATTACHMENT_ID Must be unique Asc/Asc/Asc STSP_UK
SCREEN_ID + SCREEN_TYPE_CODE Performance Asc/Asc STSP_USRSCRN_STS_FK_I

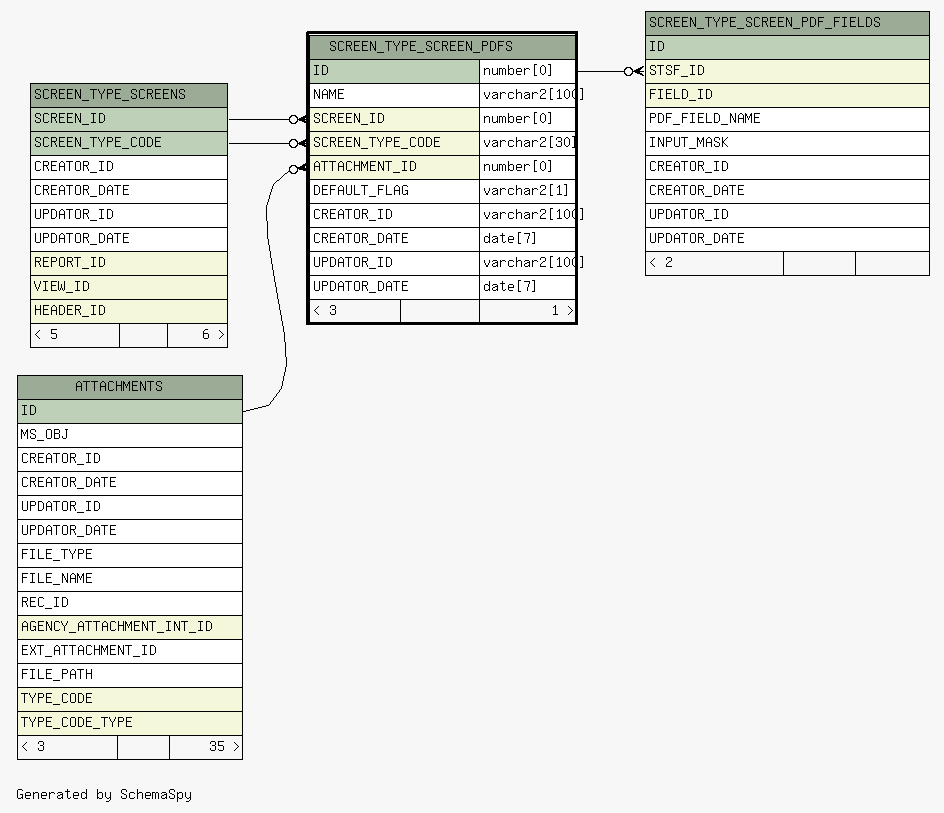

Close relationships  within of separation:
