Table slot9.WORLD.TSTA.SCREEN_TYPE_SCREEN_RPTS
This table is used for custom reports
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
SCREEN_ID number 38
SCREEN_TYPE_SCREENS.SCREEN_ID STSR_USRSCRN_STS_FK R
SCREEN_TYPE_CODE varchar2 30
SCREEN_TYPE_SCREENS.SCREEN_TYPE_CODE STSR_USRSCRN_STS_FK R
MASTER_REPORT_ID number 38
MASTER_REPORTS.MASTER_REPORT_ID STSR_MREP_FK R
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"MASTER_REPORT_ID" IS NOT NULL STSR_MR_ID_NN
"SCREEN_ID" IS NOT NULL STSR_SCRN_ID_NN
"SCREEN_TYPE_CODE" IS NOT NULL STSR_SCRN_TYP_NN

Indexes:
Column(s) Type Sort Constraint Name
SCREEN_ID + SCREEN_TYPE_CODE + MASTER_REPORT_ID Primary key Asc/Asc/Asc STSR_PK
MASTER_REPORT_ID Performance Asc STSR_MREP_FK_I
SCREEN_ID + SCREEN_TYPE_CODE Performance Asc/Asc STSR_USRSCRN_STS_FK_I

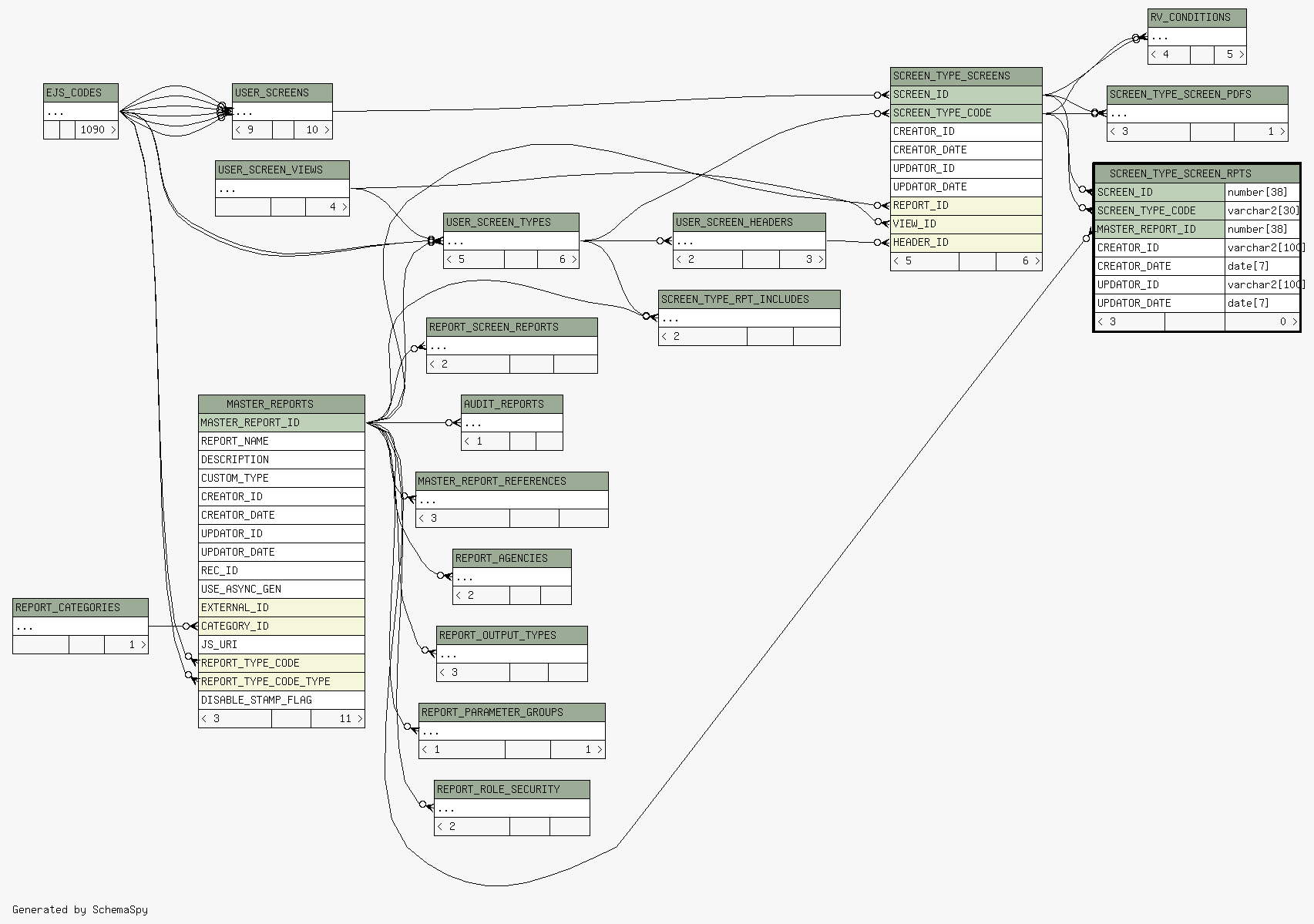

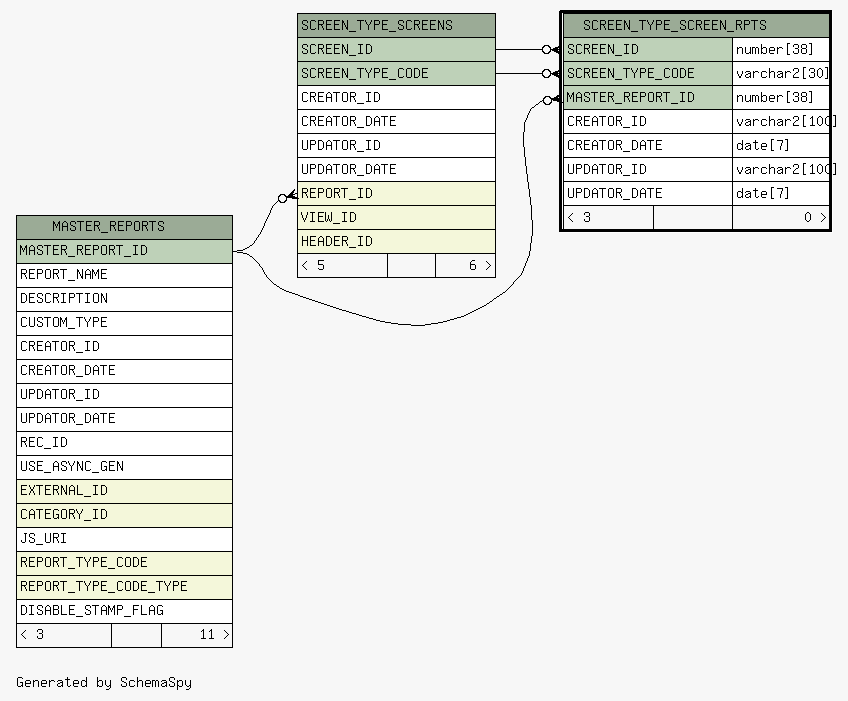

Close relationships  within of separation:
