| Legend: |
| Primary key columns |
| Columns with indexes |
| Implied relationships |
| Excluded column relationships |
| < n > number of related tables |
|
|
| Column |
Type |
Size |
Nulls |
Auto |
Default |
Children |
Parents |

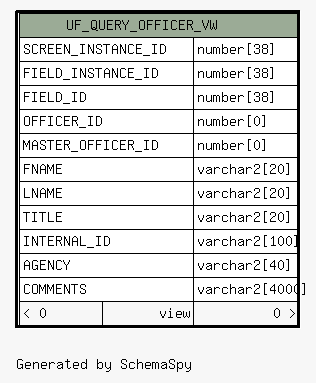

| SCREEN_INSTANCE_ID |
number |
38 |
|
|
|
|
|
| FIELD_INSTANCE_ID |
number |
38 |
|
|
|
|
|
| FIELD_ID |
number |
38 |
|
|
|
|
|
| OFFICER_ID |
number |
0 |
|
|
|
|
| OFFICERS.OFFICER_ID
|
Implied Constraint R |
|
| MASTER_OFFICER_ID |
number |
0 |
√ |
|
null |
|
|
| FNAME |
varchar2 |
20 |
√ |
|
null |
|
|
| LNAME |
varchar2 |
20 |
|
|
|
|
|
| TITLE |
varchar2 |
20 |
√ |
|
null |
|
|
| INTERNAL_ID |
varchar2 |
100 |
|
|
|
|
|
| AGENCY |
varchar2 |
40 |
√ |
|
null |
|
|
| COMMENTS |
varchar2 |
4000 |
√ |
|
null |
|
|
Analyzed at Mon Sep 20 21:05 MDT 2021
|
View Definition:
SELECT
UFI.SCREEN_INSTANCE_ID,
UFI.FIELD_INSTANCE_ID,
UFI.FIELD_ID,
O.OFFICER_ID,
O.MASTER_OFFICER_ID,
O.FNAME,
O.LNAME,
O.TITLE,
O.INTERNAL_ID,
AC.AGENCY_DESC,
UFI.COMMENTS
FROM USER_FIELDS UF
INNER JOIN USER_FIELD_INSTANCES UFI ON UF.FIELD_ID = UFI.FIELD_ID
INNER JOIN USER_FIELD_OFF_VALUES UFCV ON UFI.FIELD_INSTANCE_ID = UFCV.FIELD_INSTANCE_ID
INNER JOIN OFFICERS O ON UFCV.OFFICER_ID = O.OFFICER_ID
INNER JOIN AGENCY_CODES AC ON UFCV.AGENCY_CODE = AC.AGENCY_CODE
WHERE UF.TYPE_CODE_TYPE = 'USER_FIELD_TYPE_CODES' AND UF.TYPE_CODE = 'OFFICER'
Possibly Referenced Tables/Views:
