Table slot9.WORLD.TSTA.USER_SCREEN_AUDIT_LOG
This table stores log entries for a custom form added it the application
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
AUDIT_ID number 38
HOME_AGENCY_AUDIT.AUDIT_ID Implied Constraint R
INSTANCE_ID number 38
USER_SCREEN_INSTANCES.INSTANCE_ID USAL_USRSCRN_INST_FK R
AUDIT_CODE varchar2 30
EJS_CODES.CODE USAL_EJS_CD_AUDIT_FK R
AUDIT_CODE_TYPE varchar2 30 'USER_SCREEN_AUDIT_CODES'
EJS_CODES.CODE_TYPE USAL_EJS_CD_AUDIT_FK R
LOGIN_ID varchar2 100
IJIS_USER_PROFILES.LOGIN_ID USAL_IUP_FK R
AGENCY_CODE varchar2 100
AGENCY_CODES.AGENCY_CODE USAL_AGNCY_CD_FK R
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"AGENCY_CODE" IS NOT NULL USAL_AGNCY_CD_NN
"AUDIT_CODE" IS NOT NULL USAL_AUD_CD_NN
"AUDIT_CODE_TYPE" IS NOT NULL USAL_AUD_CD_TYP_NN
"AUDIT_ID" IS NOT NULL USAL_AUDIT_ID_NN
"INSTANCE_ID" IS NOT NULL USAL_INST_ID_NN
"LOGIN_ID" IS NOT NULL USAL_LOGIN_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
AUDIT_ID Primary key Asc USAL_PK
AGENCY_CODE Performance Asc USAL_AGNCY_CD_FK_I
AUDIT_CODE_TYPE + AUDIT_CODE Performance Asc/Asc USAL_EJS_CD_AUDIT_FK_I
LOGIN_ID Performance Asc USAL_IUP_FK_I
INSTANCE_ID Performance Asc USAL_USRSCRN_INST_FK_I

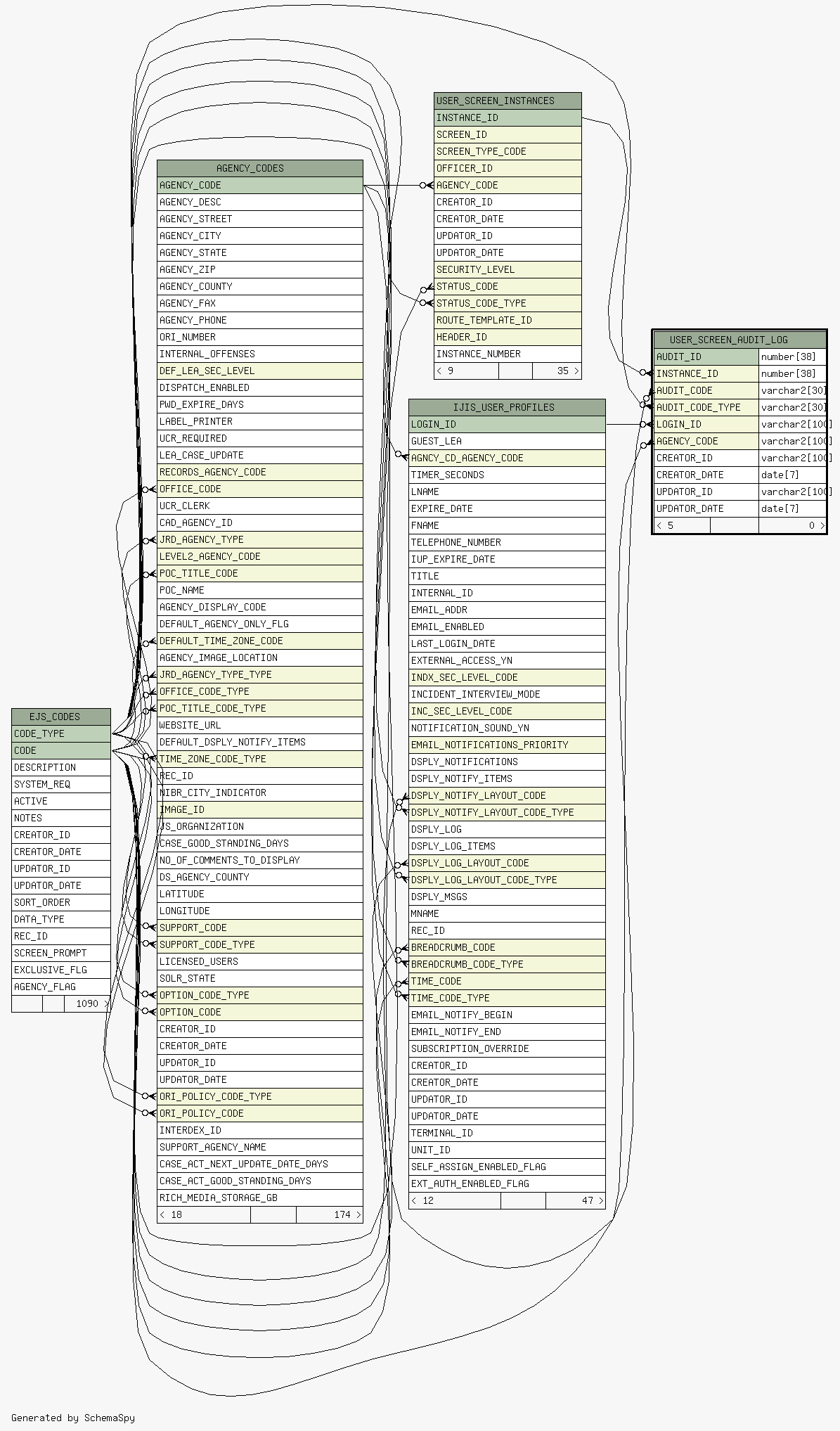

Close relationships  within of separation:
