Table slot9.WORLD.TSTA.USER_SCREEN_HEADERS
This table defines header information from the associated module (e.g. Incident, Field Arrest) to be included when printing a custom form
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
HEADER_ID number 38
SCREEN_TYPE_SCREENS.HEADER_ID USRSCRN_STS_USH_FK R
USER_SCREEN_HEADER_ROWS.HEADER_ID USHR_USH_FK R
USER_SCREEN_INSTANCES.HEADER_ID USRSCRN_INST_USH_FK R
AGENCY_CODE varchar2 30  √  null
AGENCY_CODES.AGENCY_CODE USH_AGNCY_CD_FK R
SCREEN_TYPE_CODE varchar2 30
USER_SCREEN_TYPES.SCREEN_TYPE_CODE USH_USRSCRN_TYP_FK R
DESCRIPTION varchar2 100  √  null
DEFAULT_FLAG varchar2 1  √  'N'
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
DEFAULT_FLAG IN ('Y', 'N') CK_USH_DEFAULT_FLAG
"HEADER_ID" IS NOT NULL USH_HEADER_ID_NN
"SCREEN_TYPE_CODE" IS NOT NULL USH_SCREEN_TYPE_CD_NN

Indexes:
Column(s) Type Sort Constraint Name
HEADER_ID Primary key Asc USH_PK
AGENCY_CODE Performance Asc USH_AGNCY_CD_FK_I
SCREEN_TYPE_CODE Performance Asc USH_USRSCRN_TYP_FK_I

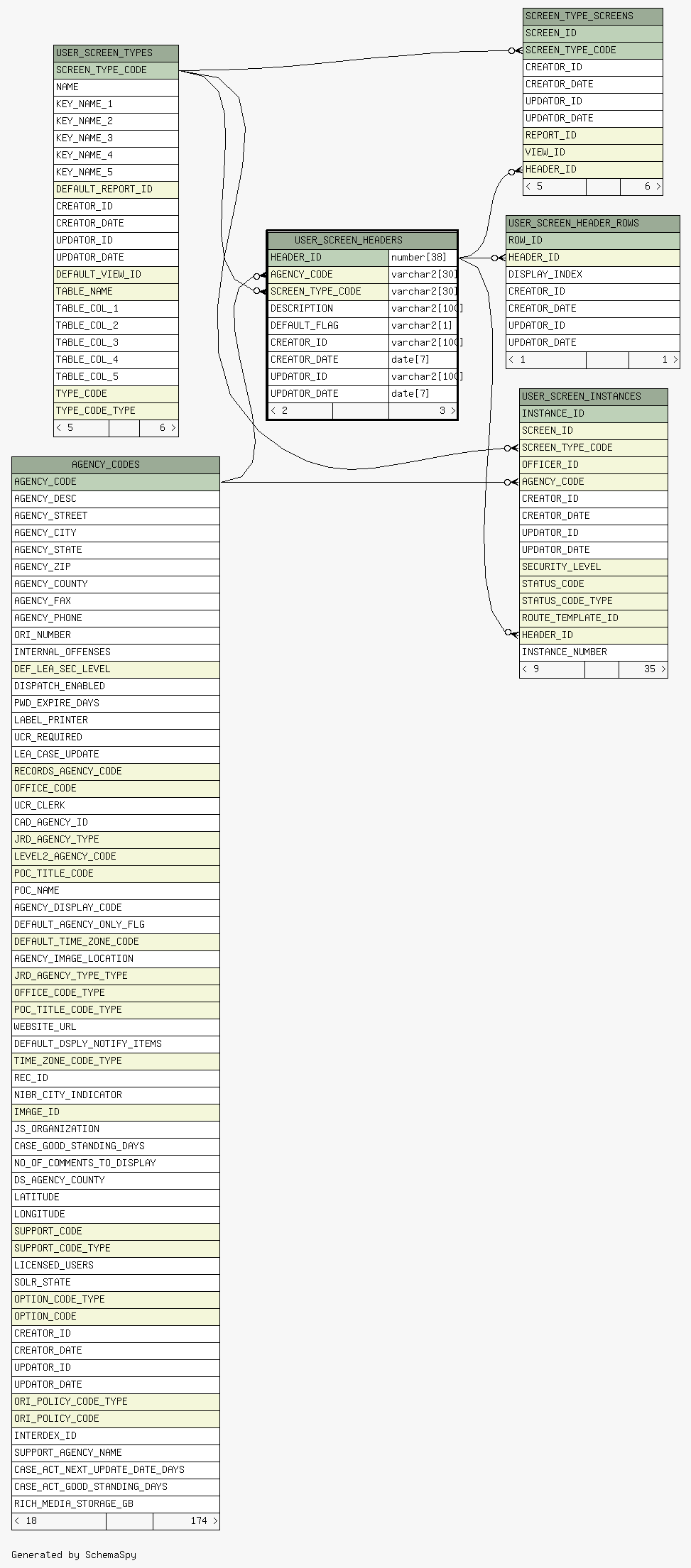

Close relationships  within of separation:
