Table slot9.WORLD.TSTA.USER_SCREEN_INST_ROUTES
This table stores routing information for notifications sent for comments added to an instance of a custom form in the application
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ROUTE_INSTANCE_ID number 38
ROUTE_INSTANCES.ROUTE_INSTANCE_ID USRSCRTI_RTEINST_FK R
SCREEN_INSTANCE_ID number 38
USER_SCREEN_INSTANCES.INSTANCE_ID USRSCRTI_USRSCRN_INST_FK R
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"ROUTE_INSTANCE_ID" IS NOT NULL USRSCRTI_RTEINST_ID_NN
"SCREEN_INSTANCE_ID" IS NOT NULL USRSCRTI_SCRINST_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
ROUTE_INSTANCE_ID + SCREEN_INSTANCE_ID Primary key Asc/Asc USRSCRTI_PK
ROUTE_INSTANCE_ID Performance Asc USRSCRTI_RTEINST_FK_I
SCREEN_INSTANCE_ID Performance Asc USRSCRTI_USRSCRN_INST_FK_I

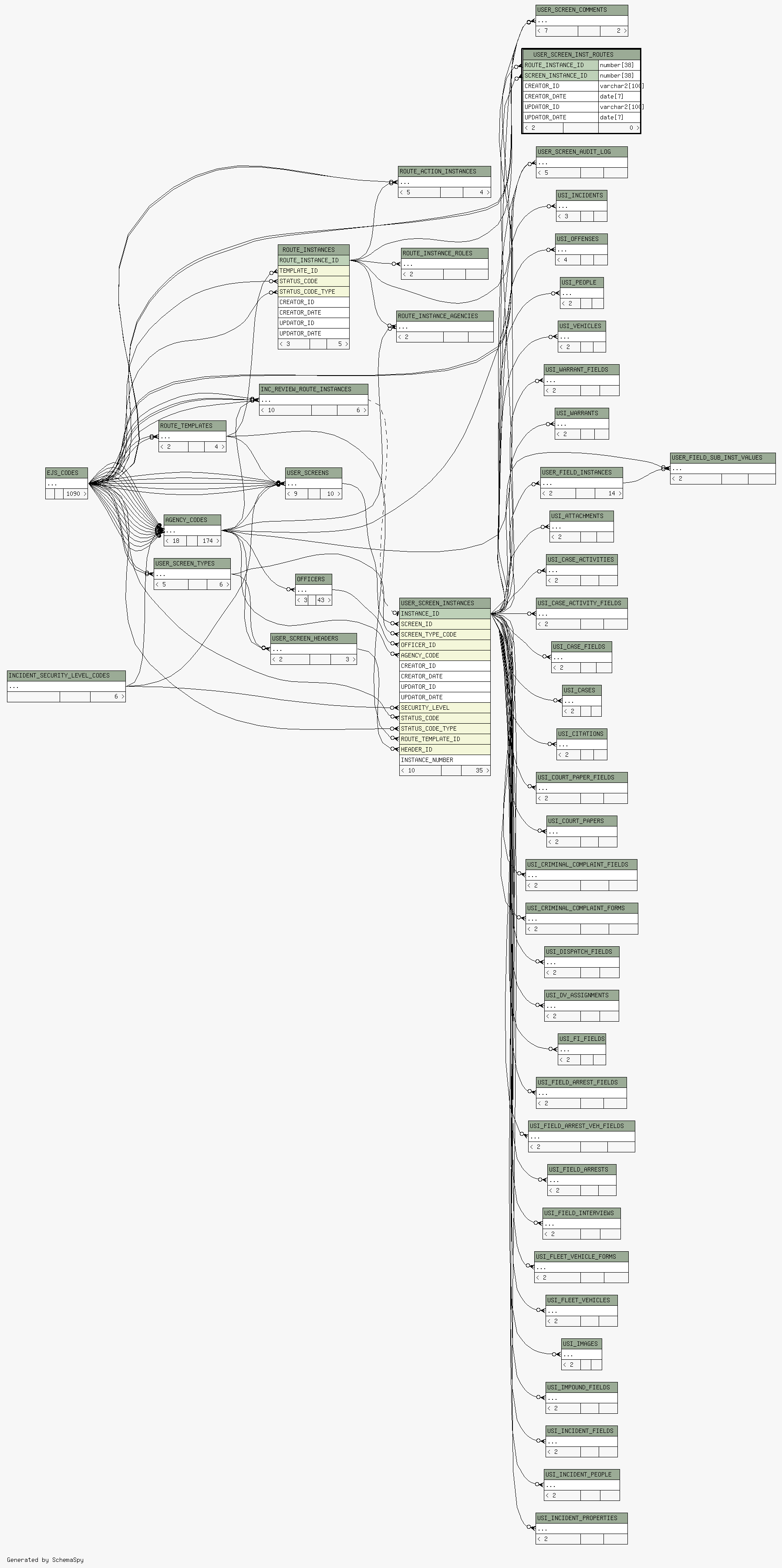

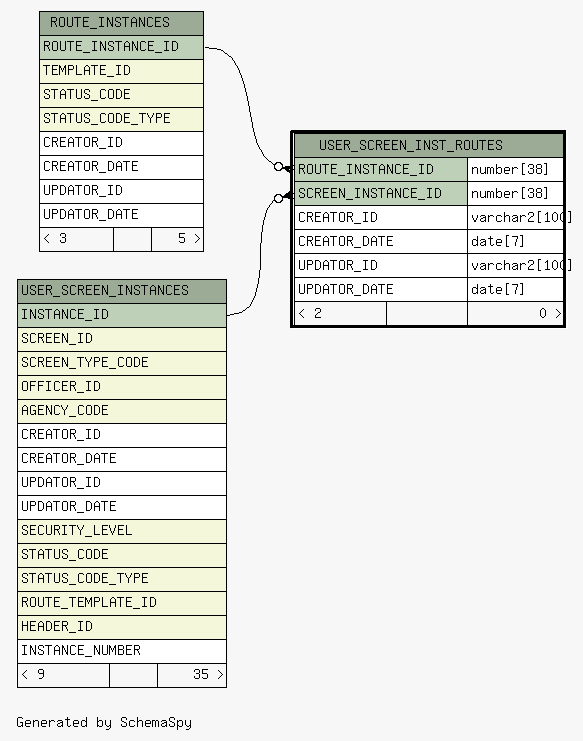

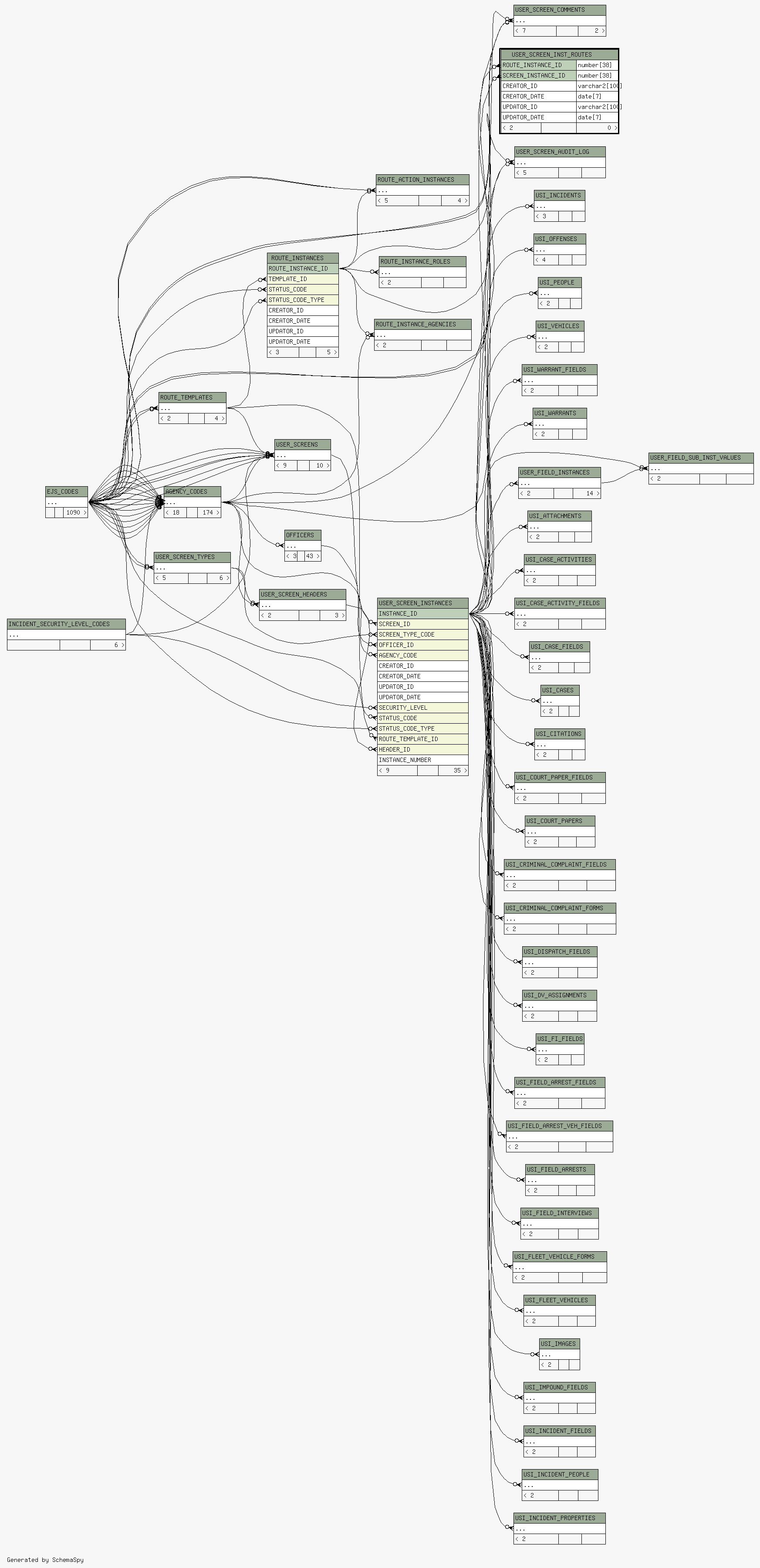

Close relationships  within of separation:
