Table slot9.WORLD.TSTA.WARRANT_IMAGES
This table stores associations to images added to a WARRANT in the application
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
WARRANT_ID number 0
E_WARRANTS.WARRANT_ID WARIMG_EWAR_FK R
IMAGE_ID number 38
IMAGES.IMAGE_ID WARIMG_IMA_FK R
IMAGE_DATE date 7
IMAGE_DESC varchar2 2000  √  null
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"IMAGE_DATE" IS NOT NULL WARIMG_IMAGE_DATE_NN
"IMAGE_ID" IS NOT NULL WARIMG_IMAGE_ID_NN
"WARRANT_ID" IS NOT NULL WARIMG_WARRANT_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
WARRANT_ID + IMAGE_ID Primary key Asc/Asc WARIMG_PK
WARRANT_ID Performance Asc WARIMG_EWAR_FK_I
IMAGE_ID Performance Asc WARIMG_IMA_FK_I

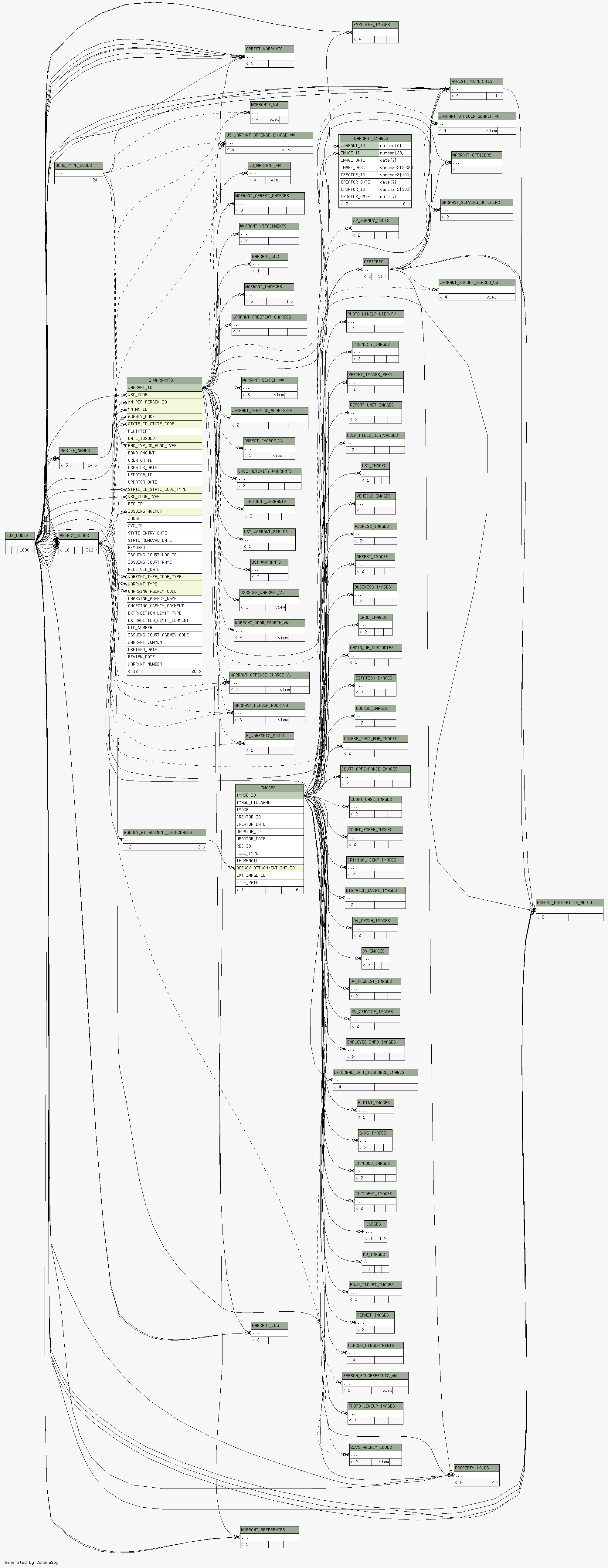

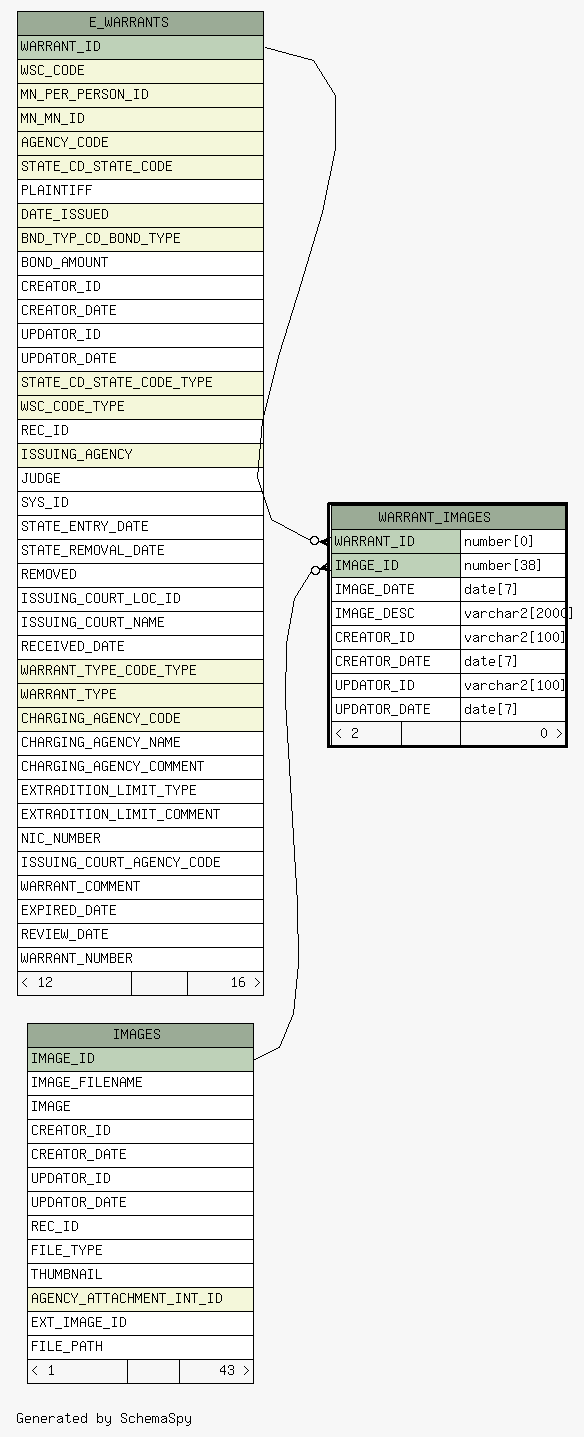

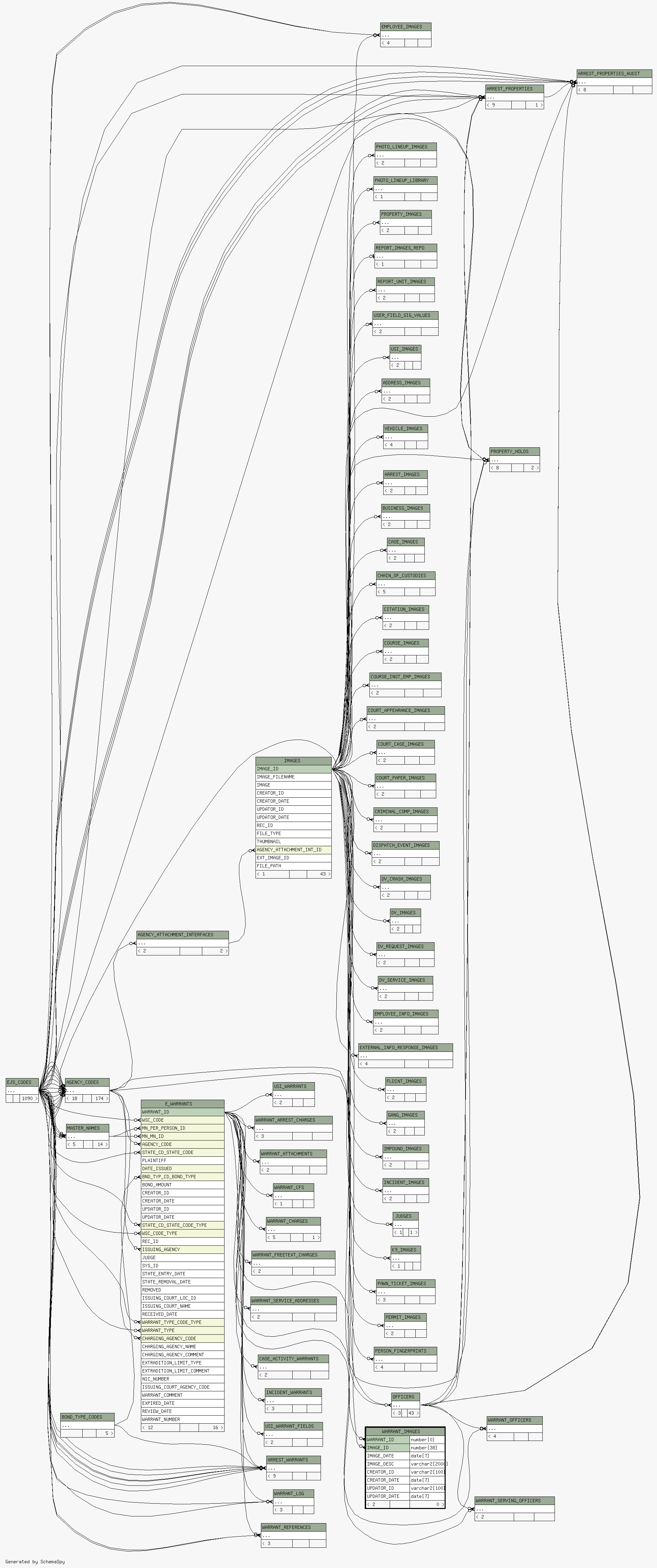

Close relationships  within of separation:
