Table slot9.WORLD.TSTA.XML_DOC_APP_TABLES
This table is an administration table that is used for processing XML documents being loaded into the database
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
BLANK_YN varchar2 1  √  'Y' Yes or No Fields
VALUE_COLUMN varchar2 32  √  null
DESC_COLUMN varchar2 32  √  null
DOC_CATEGORY_CODE varchar2 3
XML_DOCUMENT_CATEGORY_CODES.DOC_CATEGORY_CODE XDAT_DCC_FK R
The code used to identify each type of XML document being processed.
TABLE_NAME varchar2 40
APPLICATION_TABLES.TABLE_NAME XDAT_AT_FK R
Name of Table/View used by application
REC_ID number 0  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"DOC_CATEGORY_CODE" IS NOT NULL XDAT_DOC_CATEGORY_CODE_NN
"TABLE_NAME" IS NOT NULL XDAT_TABLE_NAME_NN

Indexes:
Column(s) Type Sort Constraint Name
TABLE_NAME + DOC_CATEGORY_CODE Primary key Asc/Asc XDAT_PK
TABLE_NAME Performance Asc XDAT_AT_FK_I
DOC_CATEGORY_CODE Performance Asc XDAT_DCC_FK_I

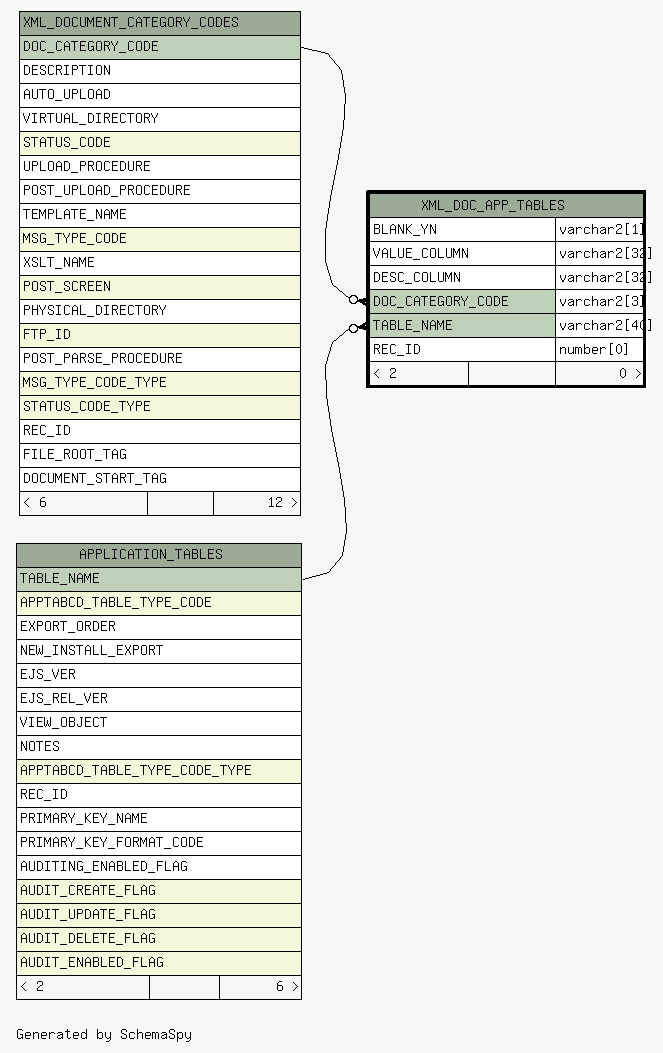

Close relationships  within of separation:
