Table slot9.WORLD.TSTA.XML_DOC_DESTINATIONS
This table is an administration table that is used for processing XML documents being loaded into the database
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
SERVICE_NAME varchar2 80
EJS_WEB_SERVICES.SERVICE_NAME XMLDD_EWS_FK R
The name of the Web Service.
DOC_CATEGORY_CODE varchar2 3
XML_DOCUMENT_CATEGORY_CODES.DOC_CATEGORY_CODE XMLDD_DCC_FK R
The code used to identify each type of XML document being processed.
CREATOR_ID varchar2 100  √  null Record Created By
CREATOR_DATE date 7  √  null Date Record was created
UPDATOR_ID varchar2 100  √  null Record updated by User ID
UPDATOR_DATE date 7  √  null Date Record was last updated
REC_ID number 0  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"DOC_CATEGORY_CODE" IS NOT NULL XMLDD_DOC_CATEGORY_CODE_NN
"SERVICE_NAME" IS NOT NULL XMLDD_SERVICE_NAME_NN

Indexes:
Column(s) Type Sort Constraint Name
DOC_CATEGORY_CODE + SERVICE_NAME Primary key Asc/Asc XMLDD_PK
DOC_CATEGORY_CODE Performance Asc XMLDD_DCC_FK_I
SERVICE_NAME Performance Asc XMLDD_EWS_FK_I

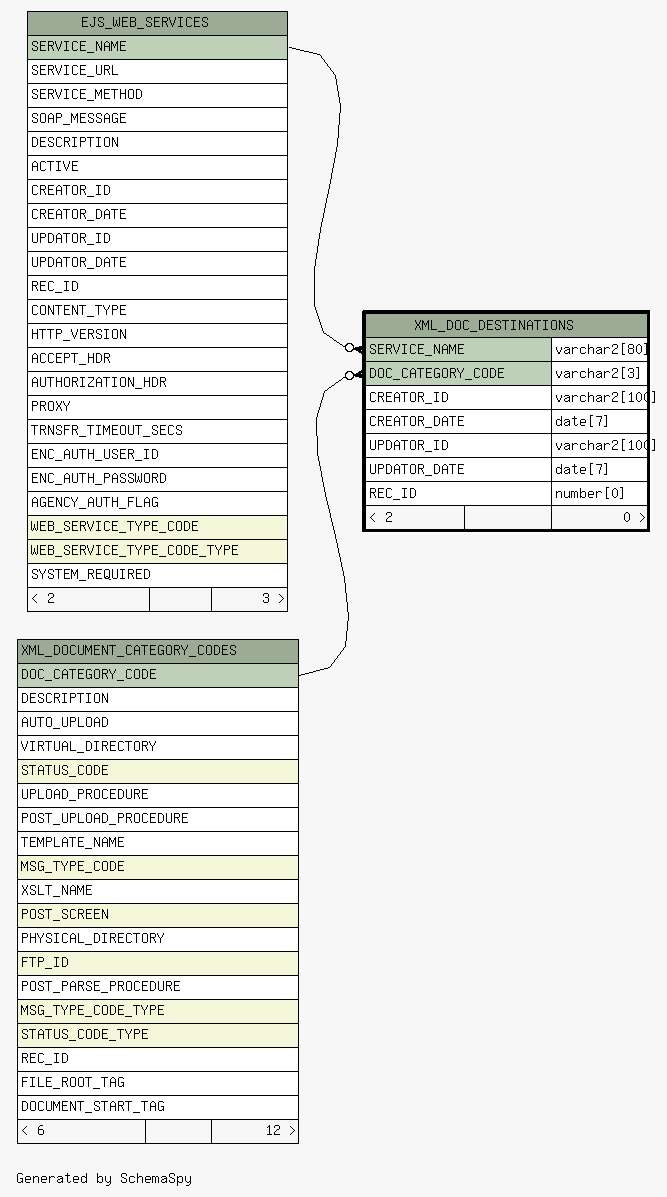

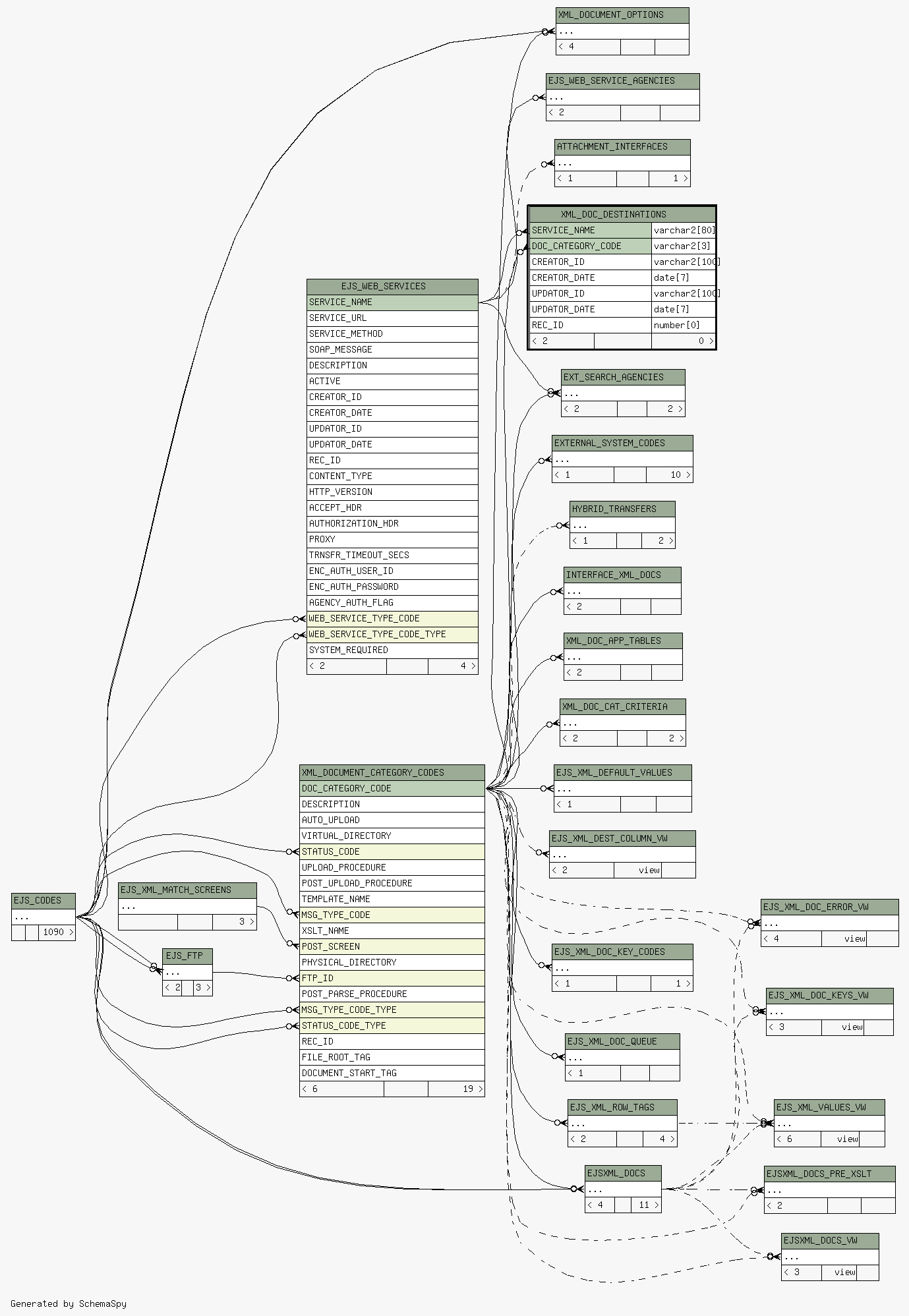

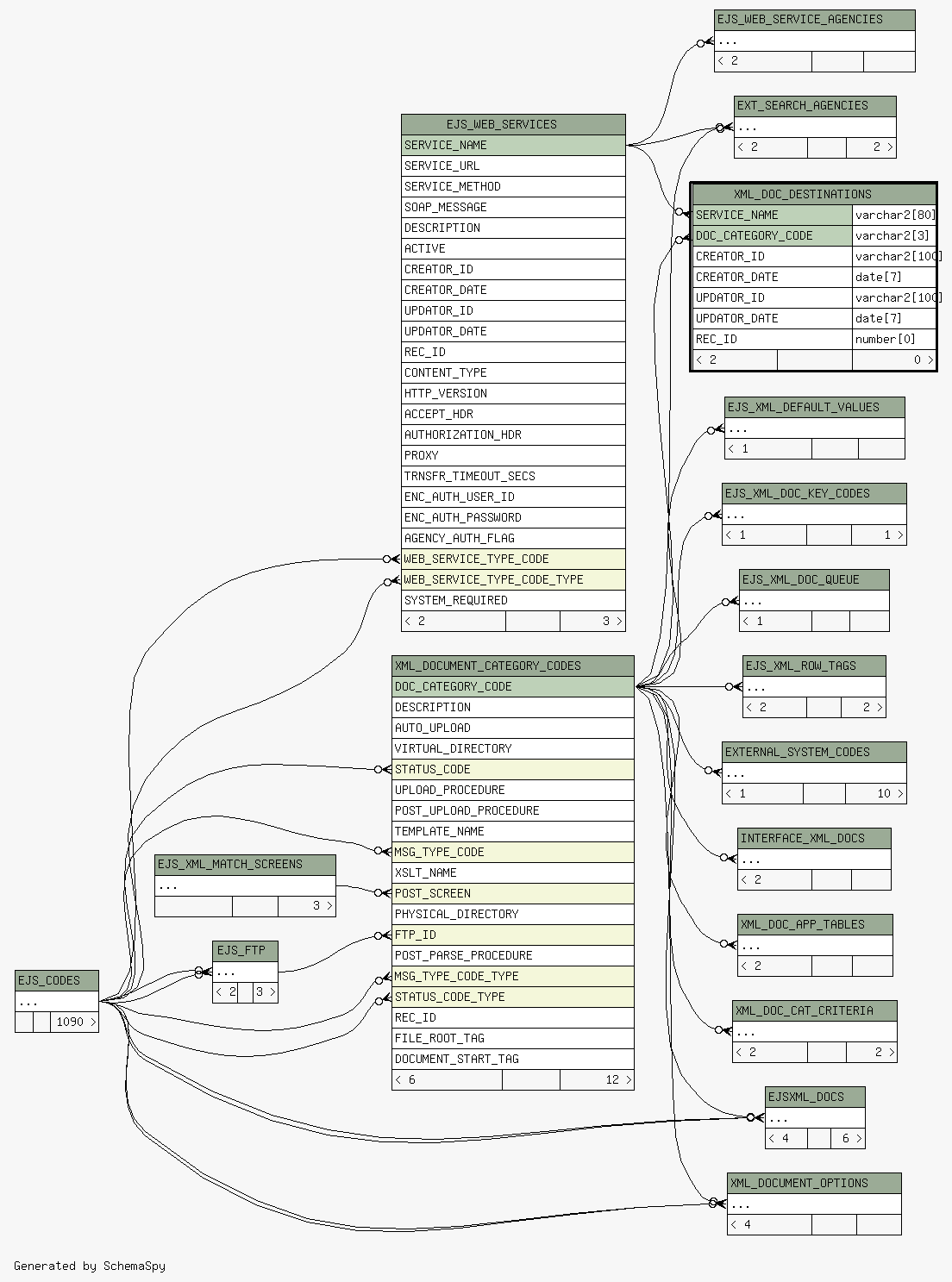

Close relationships  within of separation:
