Table slot9.WORLD.TSTA.REPORT_UNITS
Administration table used for reporting
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
REPORT_UNIT_ID number 0
REPORT_OUTPUT_TYPES.REPORT_UNIT_ID ROT_RUNIT_FK R
REPORT_UNIT_IMAGES.REPORT_UNIT_ID RUIMG_RUNIT_FK R
REPORT_UNIT_RELATIONS.CHILD_UNIT_ID RUR_RUNIT_CHILD_FK R
REPORT_UNIT_RELATIONS.PARENT_UNIT_ID RUR_RUNIT_PARENT_FK R
REPORT_PATH varchar2 255  √  null
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null
REC_ID number 0  √  null
REPORT_SRC blob 4000  √  null
REPORT_COMPILED blob 4000  √  null
DESCRIPTION varchar2 255  √  null
RESOURCE_NAME varchar2 100  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"REPORT_UNIT_ID" IS NOT NULL RUNIT_REPORT_UNIT_ID_NN

Indexes:
Column(s) Type Sort Constraint Name Anomalies
REPORT_UNIT_ID Primary key Asc RUNIT_PK
RESOURCE_NAME Must be unique Asc RUNIT_UK This unique column is also nullable

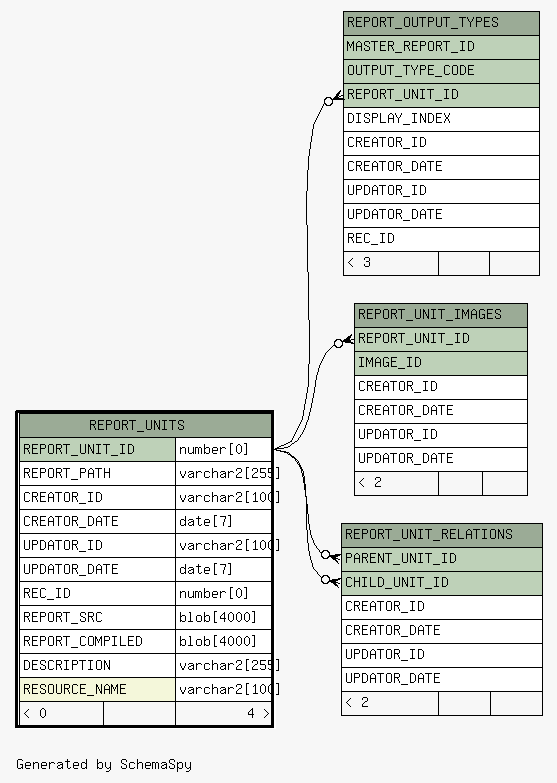

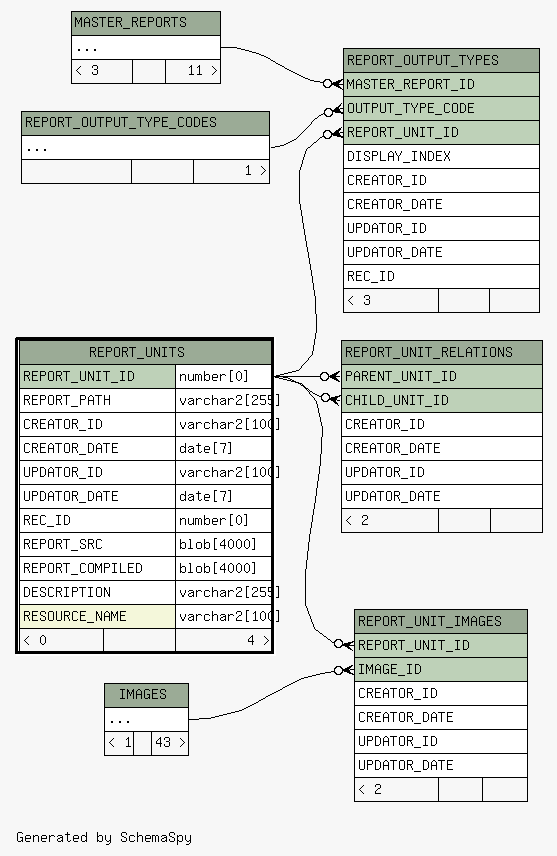

Close relationships  within of separation:
