Table slot9.WORLD.TSTA.REPORT_UNIT_IMAGES
Administration table used for reporting
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
REPORT_UNIT_ID number 38
REPORT_UNITS.REPORT_UNIT_ID RUIMG_RUNIT_FK R
IMAGE_ID number 38
IMAGES.IMAGE_ID RUIMG_IMA_FK R
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"IMAGE_ID" IS NOT NULL RUIMG_IMAGE_ID_NN
"REPORT_UNIT_ID" IS NOT NULL RUIMG_REPORT_UNIT_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
IMAGE_ID + REPORT_UNIT_ID Primary key Asc/Asc RUIMG_PK
IMAGE_ID Performance Asc RUIMG_IMA_FK_I
REPORT_UNIT_ID Performance Asc RUIMG_RUNIT_FK_I

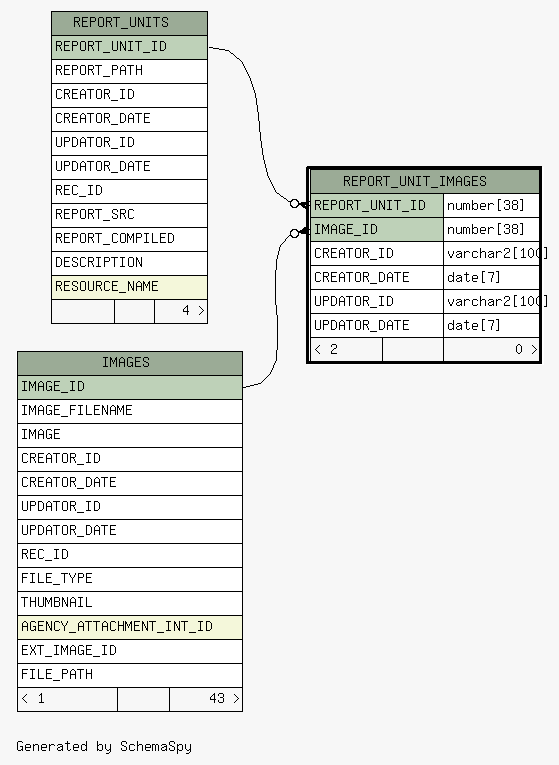

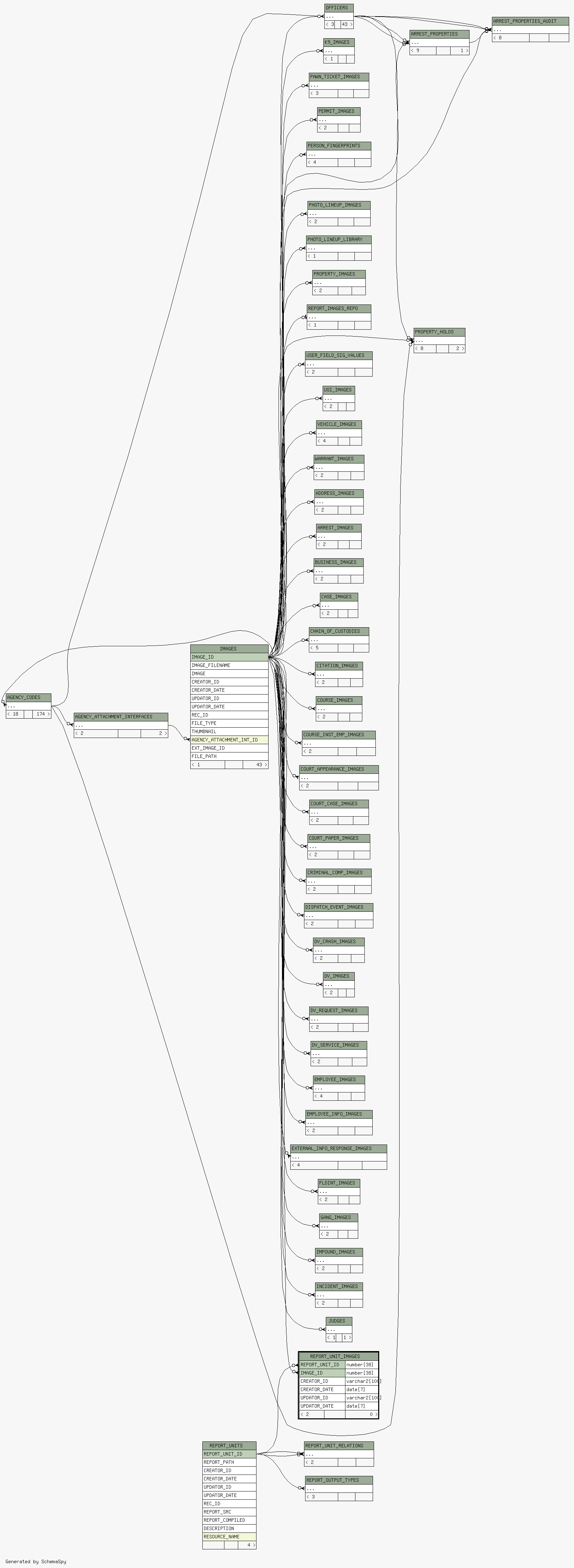

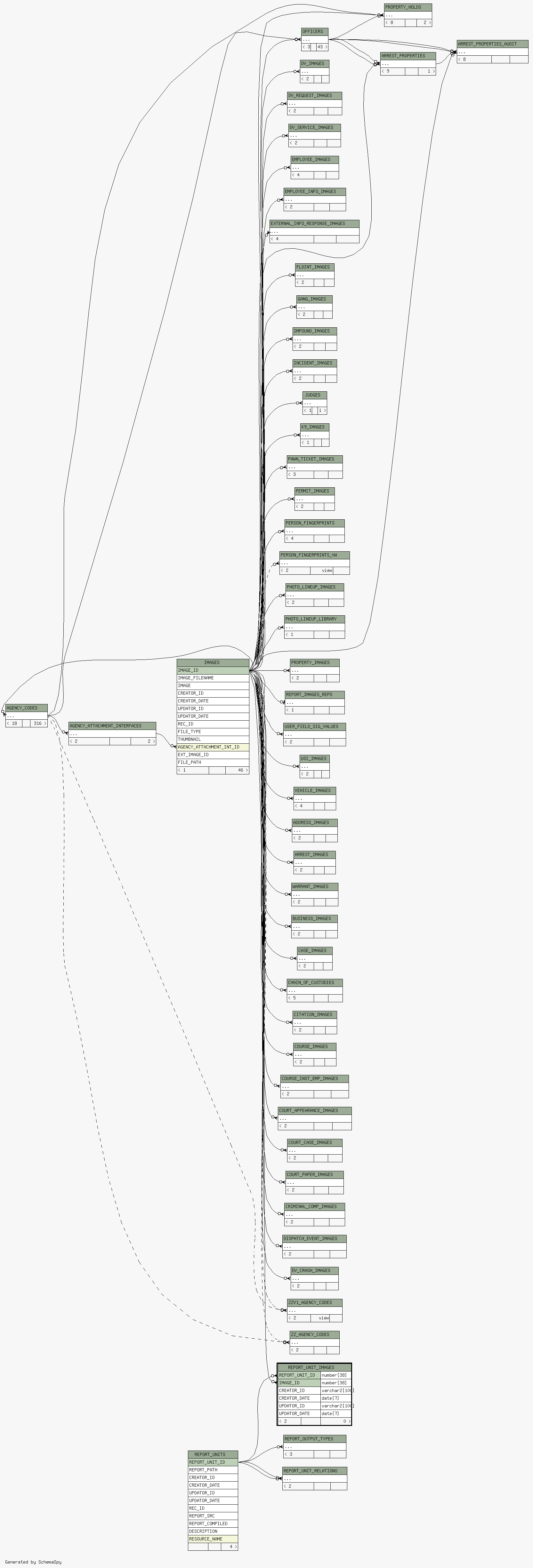

Close relationships  within of separation:
