Table slot9.WORLD.TSTA.ROUTE_TEMPLATES
This table defines the routing templates for a custom form notification
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
TEMPLATE_ID number 38
CALENDAR_TEMPLATES.TEMPLATE_ID Implied Constraint R
ROUTE_ACTIONS.TEMPLATE_ID RTEACT_ROUTEM_FK R
ROUTE_INSTANCES.TEMPLATE_ID RTEINST_ROUTEM_FK R
USER_SCREEN_INSTANCES.ROUTE_TEMPLATE_ID USRSCRN_INST_ROUTEM_FK R
USER_SCREENS.ROUTE_TEMPLATE_ID USRSCRN_ROUTEM_FK R
TYPE_CODE varchar2 30
EJS_CODES.CODE ROUTEM_TYPE_FK R
TYPE_CODE_TYPE varchar2 30
EJS_CODES.CODE_TYPE ROUTEM_TYPE_FK R
CREATOR_ID varchar2 100  √  null
CREATOR_DATE date 7  √  null
UPDATOR_ID varchar2 100  √  null
UPDATOR_DATE date 7  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"TEMPLATE_ID" IS NOT NULL ROUTEM_TEMPLATE_ID_NN
"TYPE_CODE" IS NOT NULL ROUTEM_TYP_CD_NN
"TYPE_CODE_TYPE" IS NOT NULL ROUTEM_TYP_TYP_NN

Indexes:
Column(s) Type Sort Constraint Name
TEMPLATE_ID Primary key Asc ROUTEM_PK
TYPE_CODE_TYPE + TYPE_CODE Performance Asc/Asc ROUTEM_TYPE_FK_I

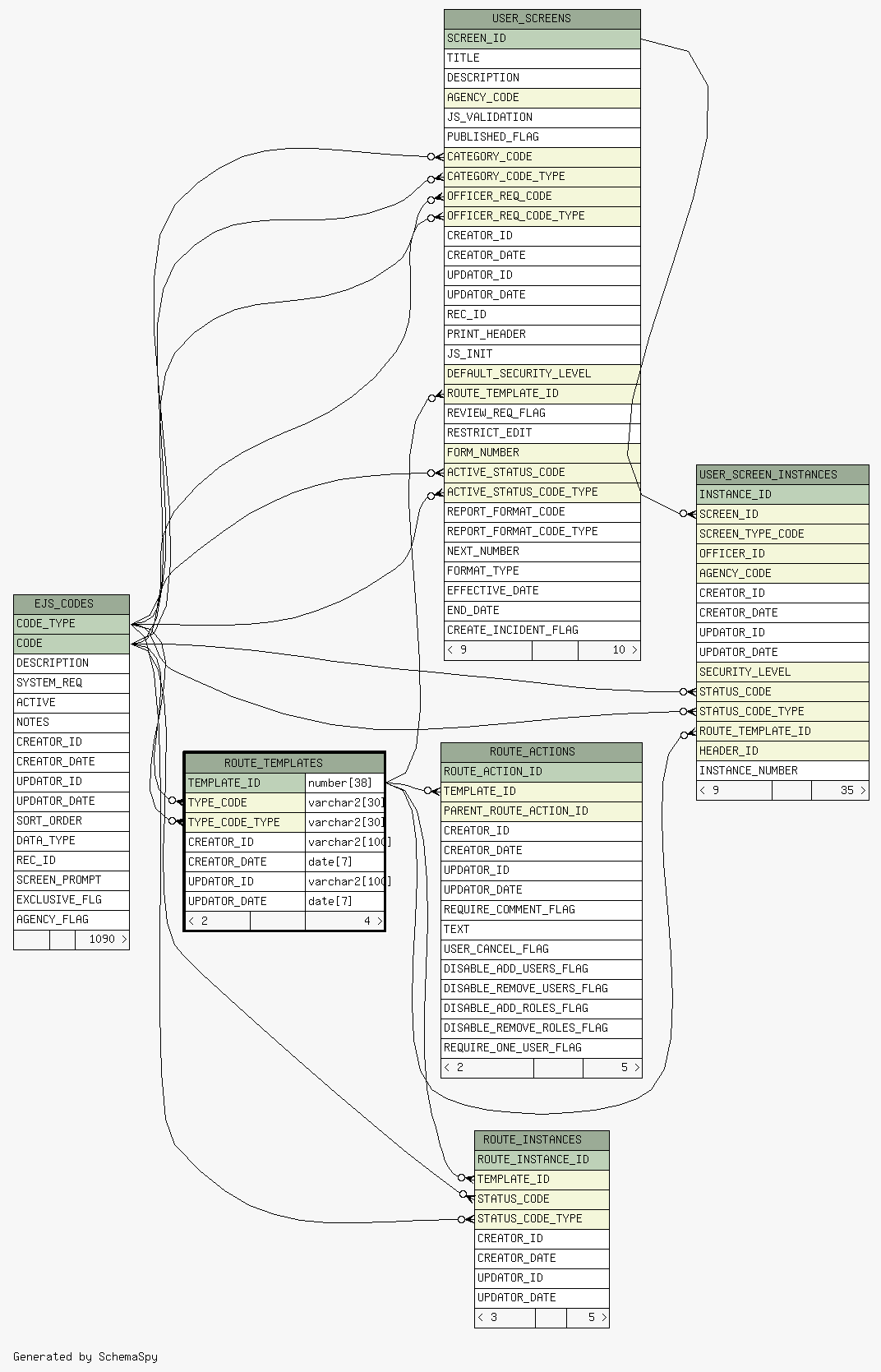

Close relationships  within of separation:
