Table slot9.WORLD.TSTA.VEHICLE_IMAGES
This table stores an association to images added to a MASTER VEHICLE in the application. The image is stored in IMAGES
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
IMA_IMAGE_ID number 38
IMAGES.IMAGE_ID VIMG_IMA_FK R
Unique ID for Image
VEHICLE_ID number 38
VEHICLES.VEHICLE_ID VIMG_VEH_FK R
VEHICLE_DESCRIPTIONS.VEHICLE_ID VIMG_VEHDSC_FK R
Vehicle ID number
DATE_OF_INFO date 7
VEHICLE_DESCRIPTIONS.DATE_OF_INFO VIMG_VEHDSC_FK R
Date of Vehicle Description Information
CREATOR_ID varchar2 100  √  null Domain to store an Oracle USER ID
CREATOR_DATE date 7  √  null Record Creation Date
UPDATOR_ID varchar2 100  √  null Domain to store an Oracle USER ID
UPDATOR_DATE date 7  √  null Record Last Updated Date
DESCRIPTION varchar2 2000  √  null Description of Image
IMAGE_DATE date 7 Date of Image
REC_ID number 0  √  null

Analyzed at Mon Sep 20 21:05 MDT 2021

Requirements (check constraints):
Constraint Constraint Name
"DATE_OF_INFO" IS NOT NULL VIMG_DATE_OF_INFO_NN
"IMA_IMAGE_ID" IS NOT NULL VIMG_IMA_IMAGE_ID_NN
"IMAGE_DATE" IS NOT NULL VIMG_IMAGE_DATE_NN
"VEHICLE_ID" IS NOT NULL VIMG_VEHICLE_ID_NN

Indexes:
Column(s) Type Sort Constraint Name
VEHICLE_ID + DATE_OF_INFO + IMA_IMAGE_ID Primary key Asc/Asc/Asc VIMG_PK
IMA_IMAGE_ID Performance Asc VIMG_IMA_FK_I
VEHICLE_ID Performance Asc VIMG_VEH_FK_I
VEHICLE_ID + DATE_OF_INFO Performance Asc/Asc VIMG_VEHDSC_FK_I

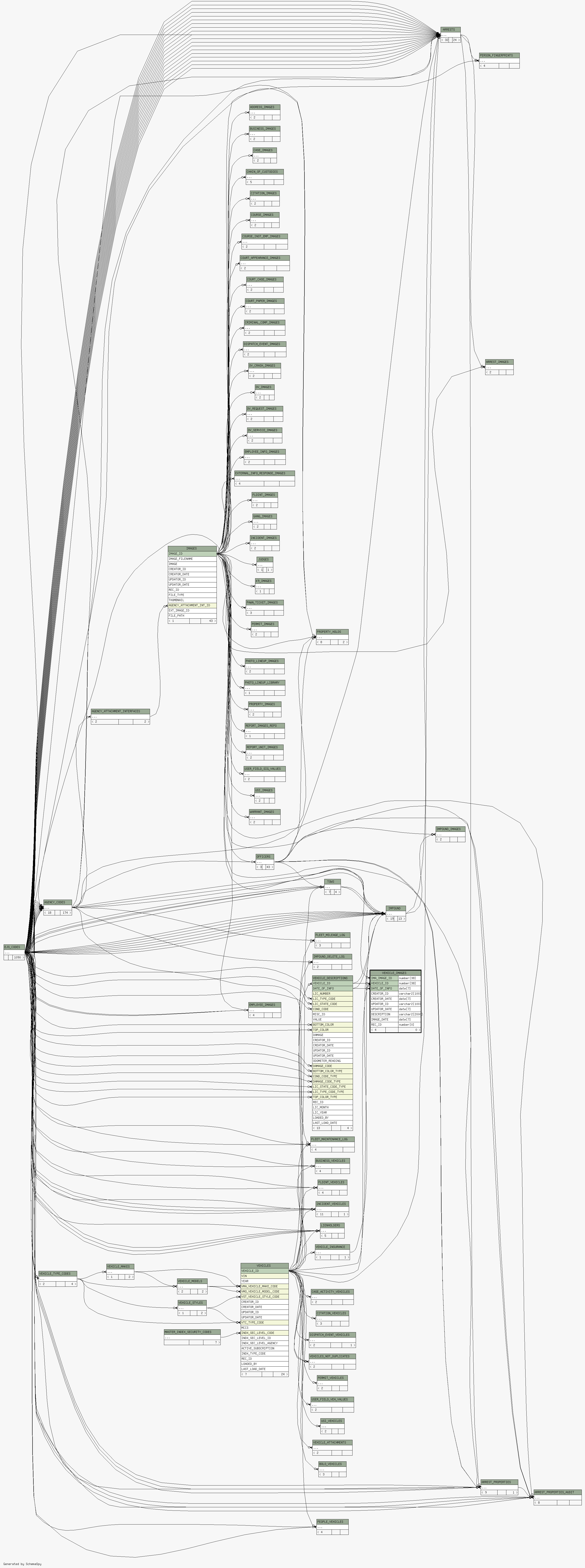

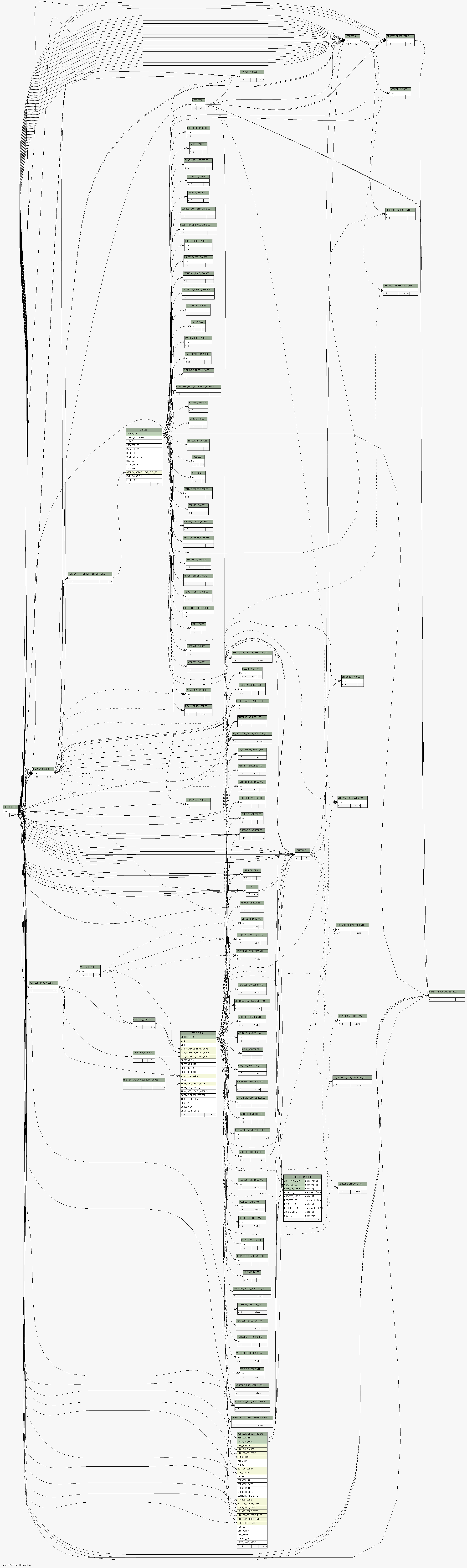

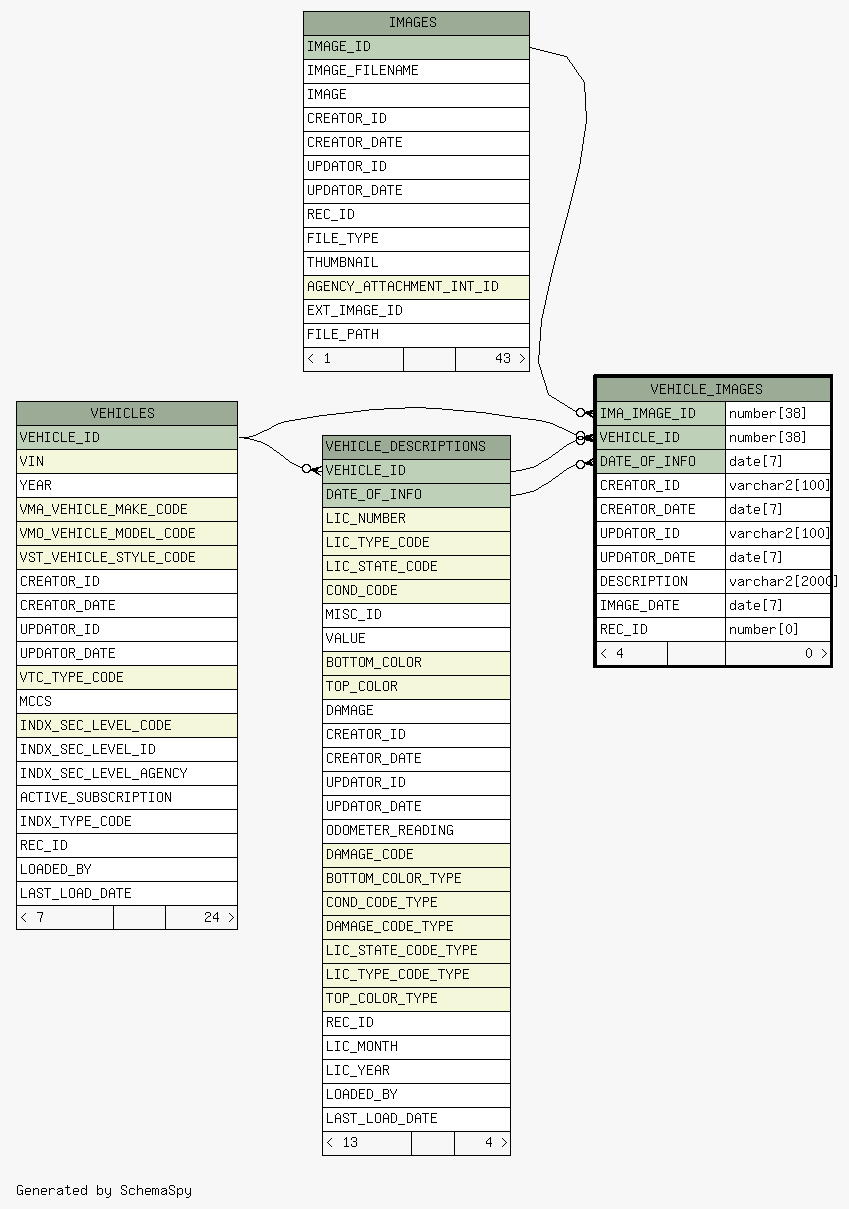

Close relationships  within of separation:
